G80 US Type A 347 Welded Master Link Assembly

This Master Link Assembly meets or exceeds all requirements of ASME B3026 including identification, ductility, design factor, proof load and temperature requirements. The master link assemblies are manufactured using superior grade raw material as per international qualitative standards. Our range of a347 master link assembly is available in standard as well as customized sizes.

Products Introduction

Product Features:

• Welded super alloy steel –Quenched and Tempered.

• Individually proof test at 2 times Working Load Limit.

• Durable Powder Coated Finish.

• LGMLAW101 to LGMLAW109: Main link: WELDED Sub links: WELDED.

• LGMLAW110: Main link: FORGED Sub links: WELDED.

Specifications

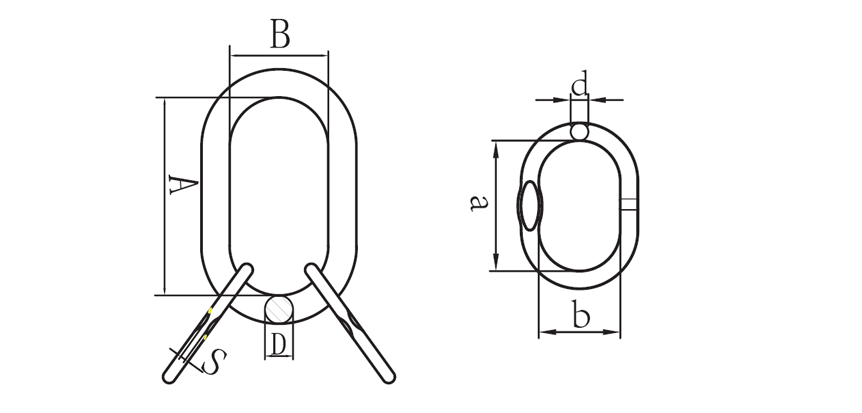

G80 U.S. TYPE A-347 WELDED MASTER LINK ASSEMBLY
SIZE	WEIGHT	CHAIN SIZE	3 OR 4 LEG	FOR ROPE	A	B	D	a	b	d	s
IN.	KG/PC	IN.	WLL(TON)	WLL(TON)	MM	MM	MM	MM	MM	MM	MM
1/2"	0.82	7/32"	2.36	2.4	100	60	14	85	40	12	6
11/16"	1.6	1/4"	3.16	3.2	160	90	18	100	60	14	7.6
5/8"	1.6	1/4"	3.15	3.2	160	90	18	100	60	14	7.6
3/4"	1.95	5/16"	4.25	4.2	160	90	20	100	60	14	7.6
7/8"	3.16	3/8"	6.7	8	180	100	22	150	70	18	8.4
1-1/8"	6.75	1/2"	11.2	12	270	140	28	160	90	22	13.5
1-1/4"	9.31	5/8"	17	17	270	140	32	180	100	25	16.5
1-1/2"	18.4	3/4"	23.6	25	300	160	40	270	140	31	19
1-3/4"	26.6	7/8"	31.5	31.5	340	180	45	285	155	36	22
2"	42.91	1"	45	45	350	190	51	340	180	45	25
