G80 US Type A 345 Forged Master Link Assembly
This Grade 80 Oblong Master Link with Sub Assemblies meets or exceeds all requirements of ASME B3026 including identification, ductility, design factor, proof load and temperature requirements. The master link assemblies are manufactured using superior grade raw material as per international qualitative standards. Our range of a345 master link assembly is available in standard as well as customized sizes.
Products Introduction
Product Features:
• Designed for triple and quad branch HA 800 slings.
• Consists of an Oblong Master link and two Master Coupling link.
• Alloy Steel, heat treated-quenched and tempered.
• Durable powder coat finish.
• Main link: Forged Sub link: Welded.
• There will be pressing flat on request for use with G80 Omega Link.
Specifications

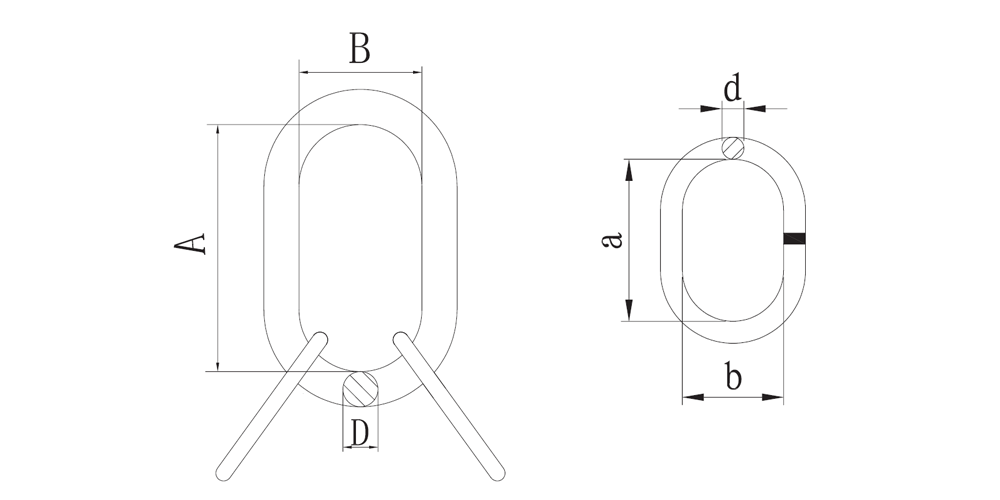

| G80 U.S. TYPE A-345 FORGED MASTER LINK ASSEMBLY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | WEIGHT | A | B | D | a | b | d | CHAIN SIZE | 3 OR 4 LEG | FOR WOPE |
| MM | KG/PC | MM | MM | MM | MM | MM | MM | IN. | WLL(TON) | WLL(TON) |
| 3/4" | 1.55 | 140 | 70 | 20 | 85 | 40 | 14 | 1/4" | 3.15 | 5.6 |
| 5/16" | 42.5 | |||||||||
| 7/8" | 2.18 | 160 | 95 | 22 | 85 | 40 | 14 | 5/16" | 4.25 | 6.9 |
| 3/8" | 6.7 | |||||||||
| 1" | 3.29 | 178 | 89 | 25 | 100 | 60 | 18 | 3/8" | 6.7 | 11.8 |
| 1-1/4" | 7.18 | 220 | 110 | 32 | 100 | 60 | 22 | 1/2" | 11.2 | 17.7 |
| 5/8" | 17 | |||||||||
| 1-1/2" | 12.91 | 267 | 135 | 38 | 180 | 100 | 30 | 5/8" | 17 | 27.7 |
| 3/4" | 23.6 | |||||||||
| 1-3/4" | 21.25 | 305 | 152 | 45 | 180 | 100 | 32 | 3/4" | 23.6 | 38.5 |
| 7/8" | 31.5 | |||||||||
| 2" | 30.34 | 356 | 178 | 50 | 180 | 100 | 38 | 7/8" | 31.5 | 46.5 |
| 2-1/2" | 64.4 | 406 | 203 | 64 | 355 | 178 | 51 | 1" | 45 | 72.6 |
| 2-3/4" | 89 | 406 | 241 | 70 | 406 | 203 | 57 | 1-1/4" | 67 | 98.4 |
