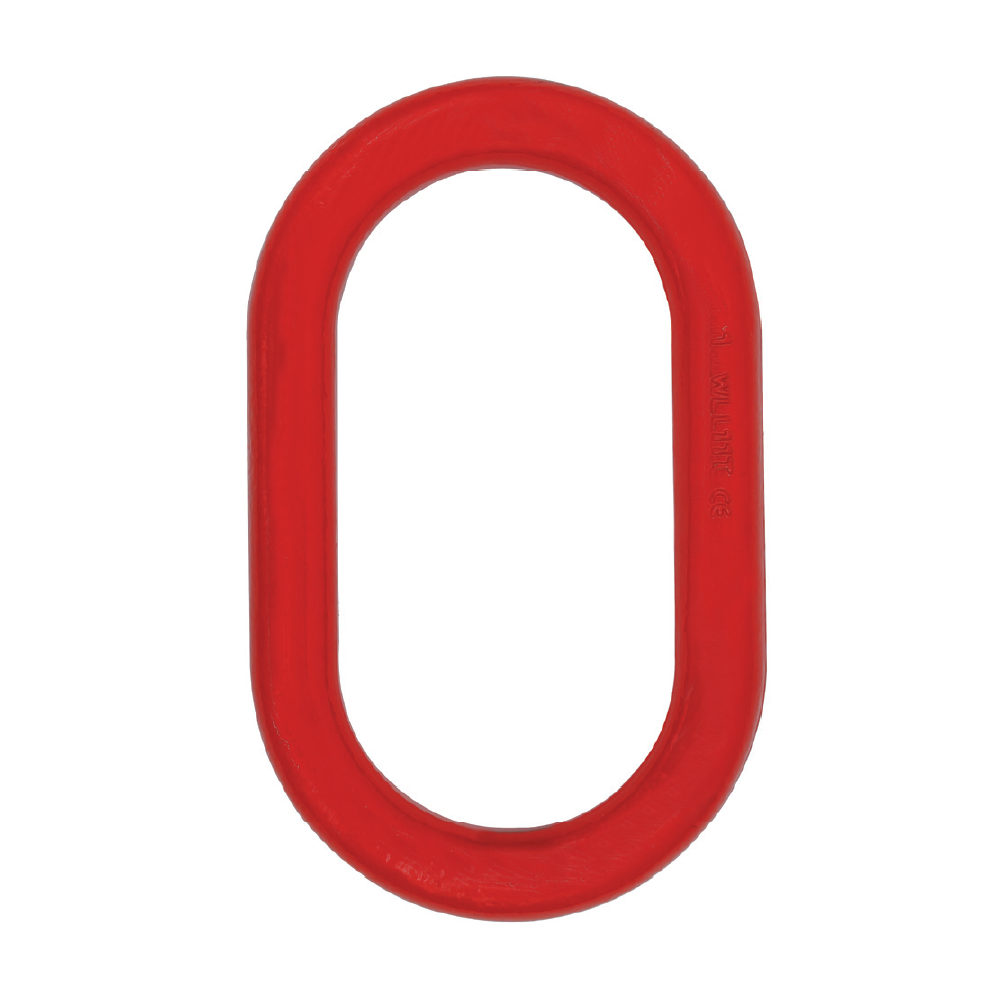

G80 FORGED MASTER LINK – US STANDARD A342
- Forged super alloy steel – Quenched and Tempered
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- Surface finish: Powder coated
- Color code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction
Specifications

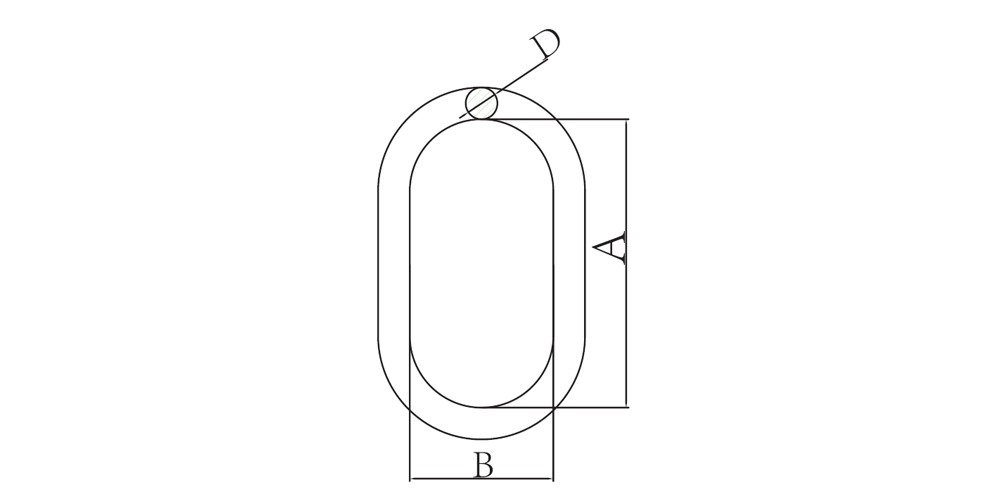

| SIZE | CHAIN SIZE | 1 LEG | 2 LEG | FOR WOPE | A | B | D | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| IN. | IN. | WLL(TON) | WLL(TON) | WLL(TON) | MM | MM | MM | KG/PC |
| 8-YWH091-1/2 | 1/4" | 1.5 | 2.12 | 3.4 | 127 | 63.5 | 13 | 0.36 |
| 5/16" | 2 | 2.8 | ||||||
| 8-YWH091-5/8 | 5/16" | 2 | 2.8 | 4 | 152 | 76 | 16 | 0.7 |
| 3/8" | 3.15 | — | ||||||
| 8-YWH091-3/4 | 3/8" | 3.15 | 4.25 | 5.6 | 140 | 70 | 19 | 0.93 |
| 8-YWH091-7/8 | 3/8" | 3.15 | 4.25 | 6.9 | 160 | 90 | 22 | 1.5 |
| 1/2" | 5.3 | — | ||||||
| 8-YWH091-1 | 1/2" | 5.3 | 7.5 | 11.8 | 178 | 89 | 25 | 2.1 |
| 5/8" | 8 | 11.2 | ||||||
| 8-YWH091-1-1/4 | 5/8" | 8 | 11.2 | 17.7 | 222 | 111 | 32 | 4.24 |
| 3/4" | 11.2 | 16 | ||||||
| 8-YWH091-1-1/2 | 3/4" | 11.2 | 16 | 27.7 | 267 | 135 | 38 | 7.17 |
| 7/8" | 15 | 21.2 | ||||||
| 8-YWH091-1-3/4 | 7/8" | 15 | 21.2 | 38.5 | 305 | 152 | 45 | 11.55 |
| 1" | 21.2 | — | ||||||
| 8-YWH091-2 | 1" | 21.2 | 30 | 46.5 | 355 | 178 | 51 | 17.2 |
| 1-1/4" | 31.5 | — | ||||||
| 8-YWH091-2-1/4 | 1-1/4" | 31.5 | 45 | 64.9 | 406 | 203 | 57 | 24.5 |
| 8-YWH091-2-1/2 | — | — | — | 72.6 | 406 | 241 | 63.5 | 30.9 |
| 8-YWH091-2-3/4 | — | — | — | 98.4 | 406 | 228 | 70 | 39.5 |
| 8-YWH091-3 | — | — | — | 103 | 457 | 254 | 76 | 50.34 |
| 8-YWH091-3-1/4 | — | — | — | 119 | 508 | 305 | 82.5 | 65.68 |
| 8-YWH091-3-1/2 | — | — | — | 126 | 508 | 305 | 89 | 90.24 |
| 8-YWH091-3-3/4 | — | — | — | 152 | 508 | 254 | 95 | 89.27 |
| 8-YWH091-4 | — | — | — | 169 | 508 | 254 | 102 | 103.43 |
