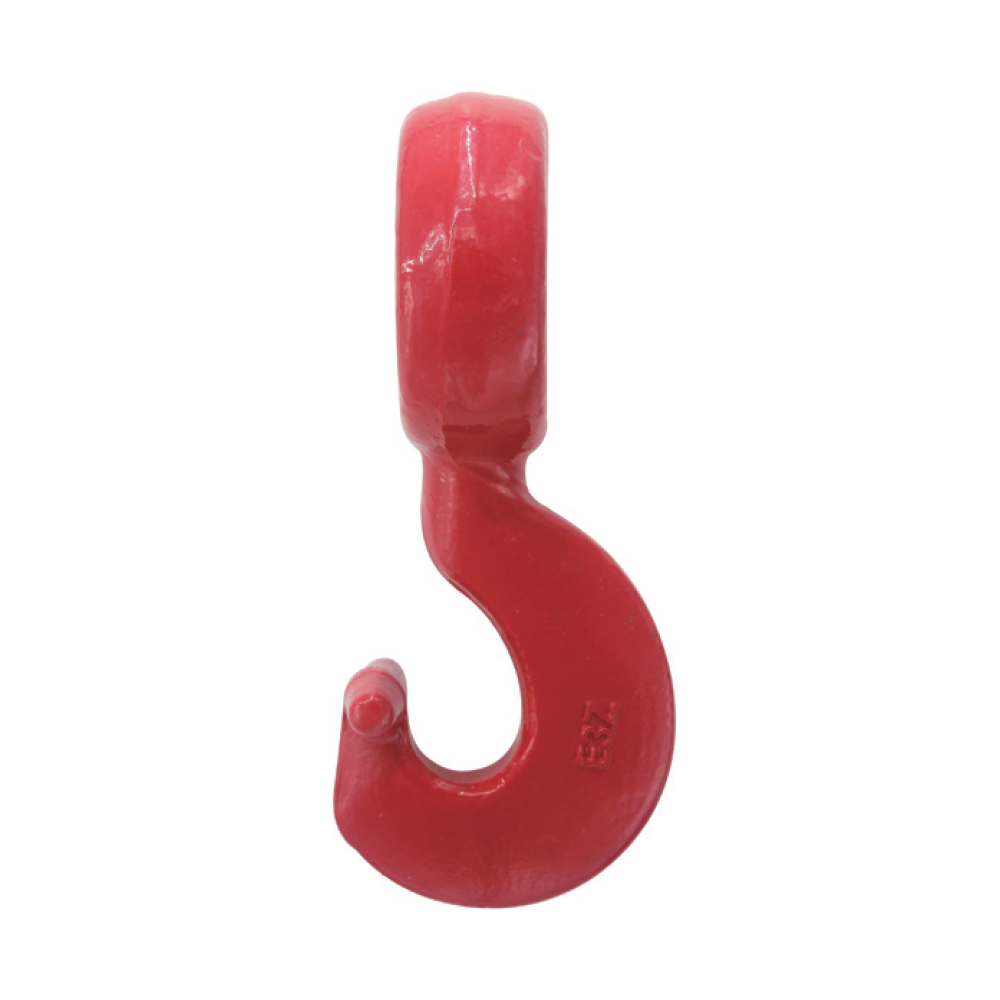

G80 TWIST EYE CHOKE HOOK
- Forged super alloy steel – Quenched and Tempered
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- Surface finish: Powder coated
- Color code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction
Specifications

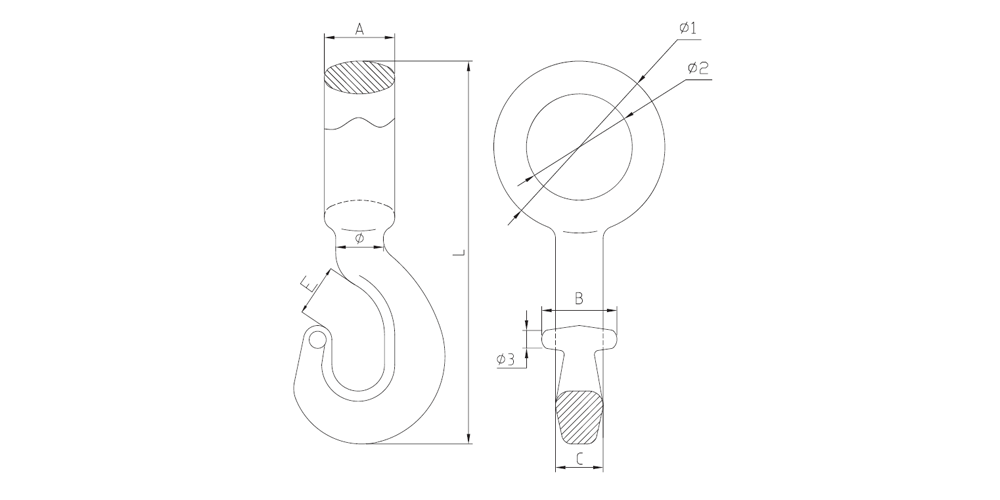

| ITEM NO. | WEIGHT (kg) | WLL (T) | B.L (T) | A±2.5 | B±2 | C±1.5 | ر1 | Ø1±2.5 | Ø2±2.5 | Ø3 | E±1 | L±2.5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8-YWH026–7/8 | 0.36 | 2 | 8 | 19 | 28 | 16.5 | 17 | 52 | 30.5 | 7.5 | 16 | 123 |
| 8-YWH026–10 | 0.72 | 3.2 | 12.8 | 26 | 40 | 17.5 | 20 | 68 | 39 | 8 | 20 | 157 |
| 8-YWH026–13 | 1.4 | 5.4 | 21.6 | 34 | 43 | 21 | 25 | 87 | 53 | 10 | 27 | 196.5 |
| 8-YWH026–16 | 3.17 | 8.2 | 32.8 | 51 | 45.5 | 31 | 30 | 108 | 64 | 10.5 | 30 | 246 |
| 8-YWH026–18 | 3.8 | 10 | 40 | 49.5 | 53 | 33.5 | 33.5 | 121 | 75 | 12 | 36.5 | 268.6 |
| 8-YWH026–20/22 | 8.95 | 15.3 | 61.2 | 70 | 80 | 44 | 52 | 146 | 84 | 14 | 47 | 367 |
| 8-YWH026–26 | 16.65 | 21.2 | 84.8 | 80 | 80 | 44 | 60 | 180 | 100 | 24.3 | 44 | 417 |
