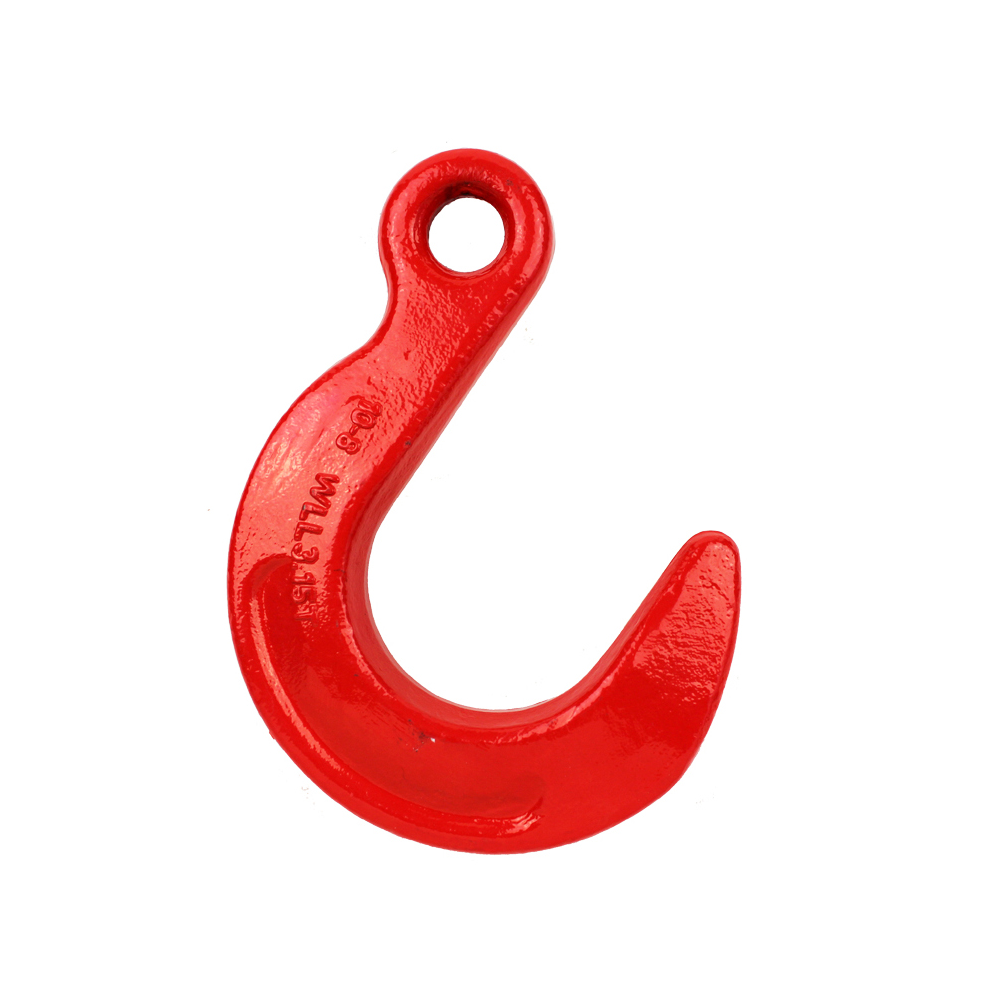

G80 SMALL EYE FOUNDRY HOOK
- Forged super alloy steel – Quenched and Tempered
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- Surface finish: Powder coated
- Color code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction
Specifications

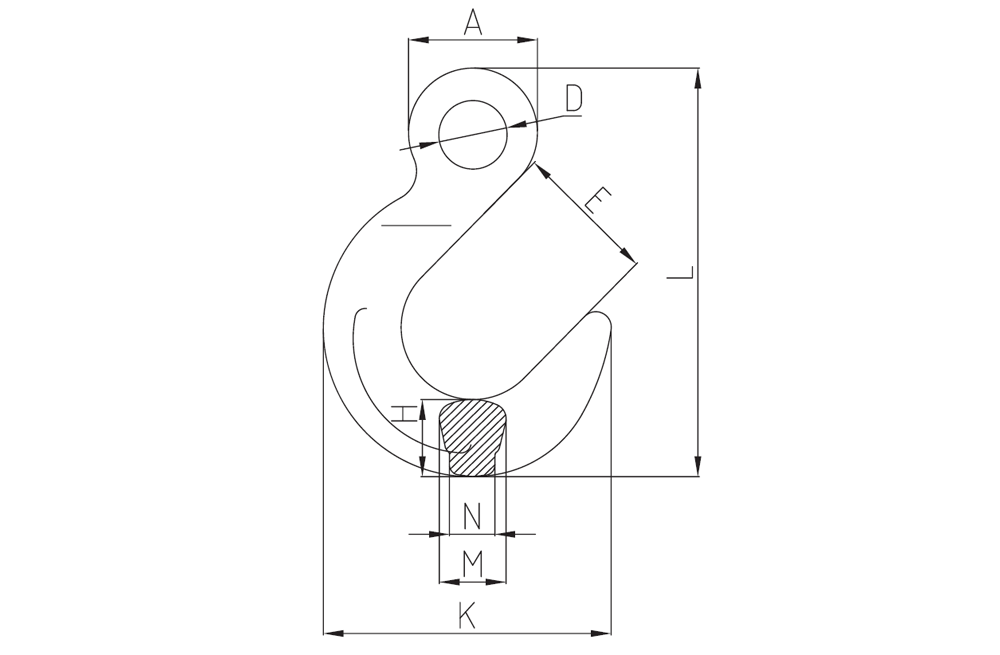

| ITEM NO. | WEIGHT (kg) | WLL (T) | B.L (T) | E ±1.2 | A ±1 | D ±1 | H ±1 | M ±1 | N ±0.5 | K ±2 | L ±2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8–YWH015–6 | 1.09 | 1.6 | 6.4 | 63.5 | 39 | 18 | 31 | 25.4 | 18 | 120 | 163 |
| 8–YWH015–8 | 1.09 | 2 | 8 | 63.5 | 39 | 18 | 31 | 25.4 | 18 | 120 | 163 |
| 8–YWH015–10 | 2.03 | 3.2 | 12.8 | 76 | 50.8 | 22 | 38 | 32.6 | 23 | 146 | 200 |
| 8–YWH015–13 | 3.22 | 5.4 | 21.6 | 89 | 63.5 | 27 | 44.5 | 38.1 | 27 | 171 | 238 |
| 8–YWH015–16 | 5.26 | 8.2 | 32.8 | 102 | 76 | 32 | 52 | 46 | 32 | 198 | 278 |
| 8–YWH015–20 | 9.1 | 12.8 | 51.2 | 114.5 | 89 | 38 | 65 | 55.9 | 39 | 232 | 325 |
| 8–YWH015–22 | 11.3 | 15.5 | 62 | 127.5 | 102 | 45 | 69 | 57 | 40 | 256 | 361 |
| 8–YWH015–26 | 16.8 | 21.6 | 86.4 | 140 | 126 | 66.5 | 77 | 66 | 45 | 283 | 402 |
| 8–YWH015–32 | 26.6 | 32.8 | 131.2 | 153.5 | 151.5 | 81.5 | 97.5 | 80 | 58 | 327 | 461 |
