G80 OMEGA LINK
- Forged super alloy steel – Quenched and Tempered
- Suitable for EN818-2 G80 chain
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- All load pins are 100% individually inspected and tested
- Surface finish: Powder coated
- Color code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction

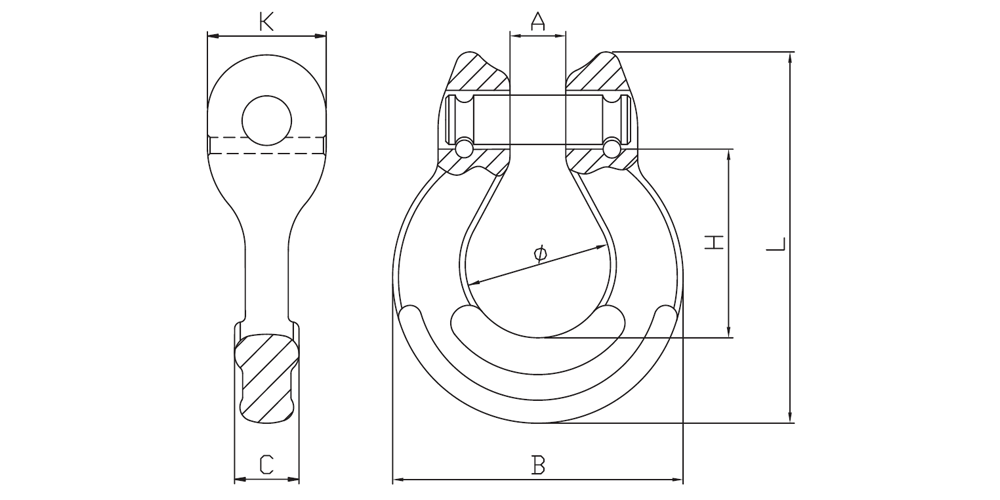

Specifications
| ITEM NO. | WEIGHT (KG) | WLL (T) | B.L (T) | A ± 0.5 | B ± 2 | C ± 1 | Ø ± 1 | H ± 1.5 | L ± 2 | K ± 1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 8-YWH002–06 | 0.12 | 1.12 | 4.48 | 8 | 41 | 9 | 21.5 | 25 | 52 | 17 |
| 8-YWH002–7/8 | 0.22 | 2 | 8 | 10 | 52 | 14 | 23.5 | 35 | 68.5 | 22 |
| 8-YWH002–10 | 0.36 | 3.15 | 12.6 | 12.5 | 66 | 16 | 31 | 40.5 | 87 | 26 |
| 8-YWH002–13 | 0.71 | 5.3 | 21.2 | 15 | 81 | 20 | 41 | 54 | 108 | 34 |
| 8-YWH002–16 | 1.12 | 8 | 32 | 19 | 99 | 25.5 | 49.5 | 64 | 126 | 38.5 |
| 8-YWH002–20 | 2.1 | 12.5 | 50 | 23 | 118 | 32 | 58 | 75.6 | 152 | 50 |
