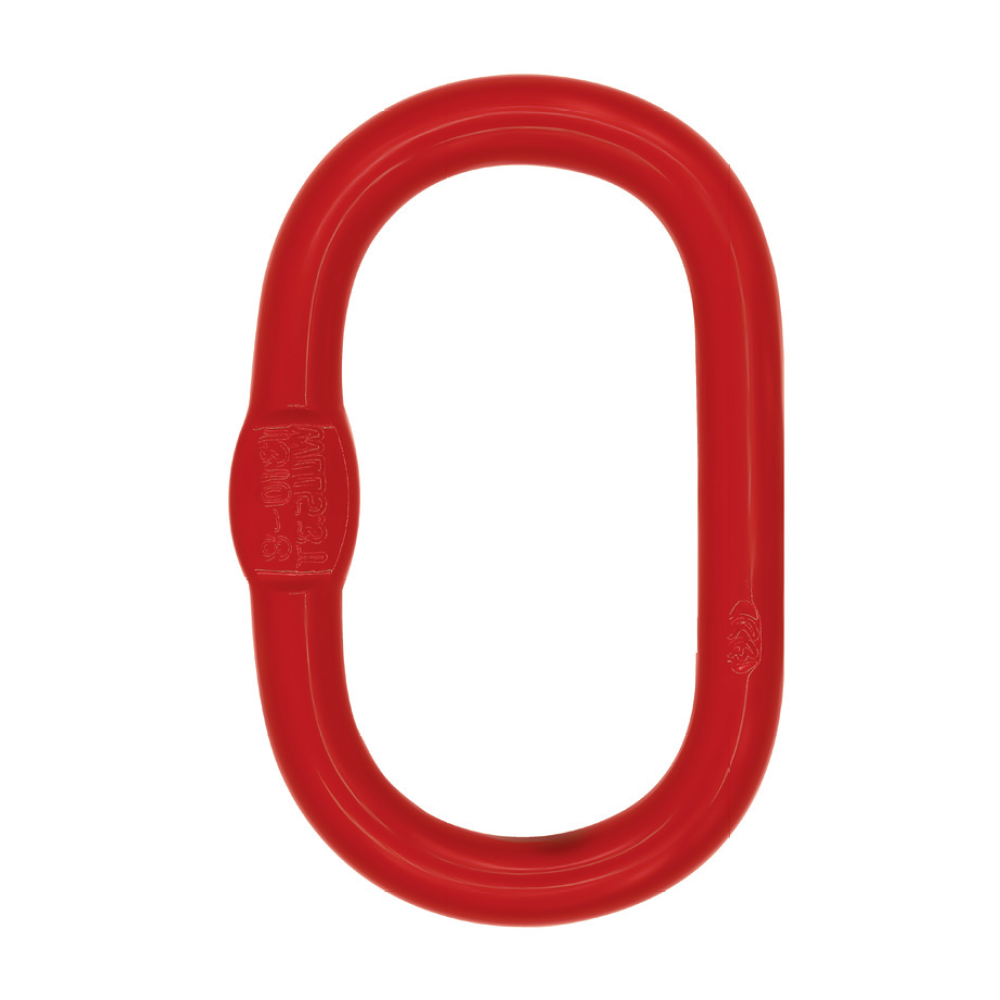

G80 MASTER LINK – EUROPEAN STANDARD
- Standard: EN1677-4 (Supersedes DIN5688-3)
- Super alloy steel – Quenched and Tempered
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- Suitable for 1 or 2 legs G80 chain sling as per EN818-4
- Surface finish: Powder coated
- Color code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction
Specifications
| ITEM No. | WEIGHT (Kg) | WLL (T) | A | B | D | S × H |
|---|---|---|---|---|---|---|
| 8–YWH–33–76–8 | 0.34 | 1.6 | 110 | 60 | 13 | 7+0.3×25 |
| 8–YWH–33–76–8B | 0.43 | 1.6 | 140 | 80 | 13 | 7+0.3×25 |
| 8–YWH–33–87–8 | 0.54 | 2.12 | 110 | 60 | 16 | 7+0.5×25 |
| 8–YWH–33–87–8B | 0.63 | 2.12 | 140 | 80 | 16 | 7+0.5×25 |
| 8–YWH–33–108–8 | 0.823 | 3.15 | 135 | 85 | 18 | 8+0.75×28 |
| 8–YWH–33–108–8B | 1.1 | 3.15 | 180 | 120 | 18 | 8+0.5×28 |
| 8–YWH–33–1310–8 | 1.5 | 5.3 | 160 | 90 | 22 | 11±0.5×35 |
| 8–YWH–33–1310–8B | 2.1 | 5.3 | 180 | 120 | 22 | 11±0.5×35 |
| 8–YWH–33–16–13–8 | 2.32 | 8 | 180 | 100 | 26 | 13±0.5×43 |
| 8–YWH–33–18–16–8 | 3.95 | 11.2 | 200 | 110 | 32 | 17±0.5×55 |
| 8–YWH–33–20–18–8 | 6.34 | 14 | 260 | 140 | 36 | 19±0.5×60 |
| 8–YWH–33–22–20–8 | 8.96 | 17 | 300 | 160 | 40 | 20±0.5×64 |
| 8–YWH–33–26–22–8 | 12.8 | 21.2 | 340 | 180 | 45 | — |
| 8–YWH–33–31–26–8 | 16.55 | 31.5 | 350 | 190 | 50 | — |
| 8–YWH–33–36–32–8 | 23.28 | 40 | 390 | 200 | 56 | — |
| 8–YWH–33–40–36–8 | 32 | 56 | 430 | 230 | 63 | — |
| 8–YWH–33–72–8 | 45.76 | 63 | 460 | 250 | 72 | — |
