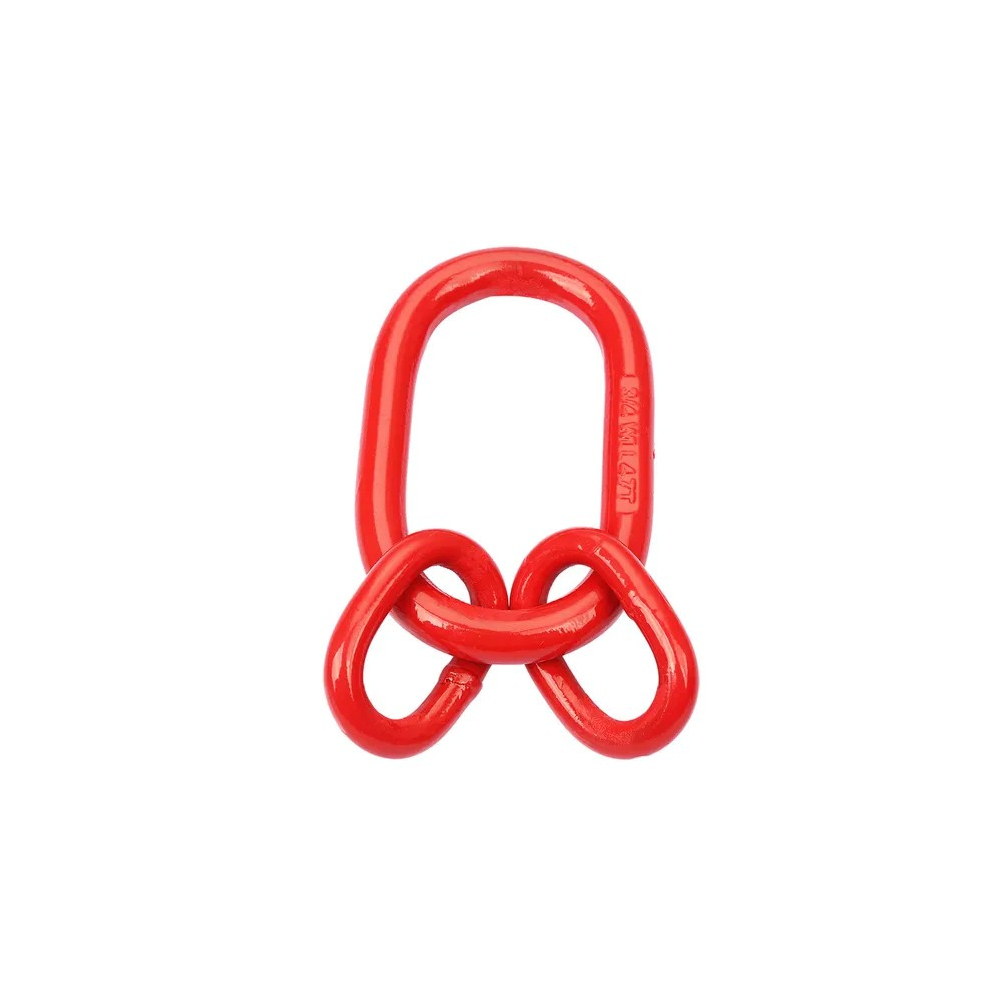

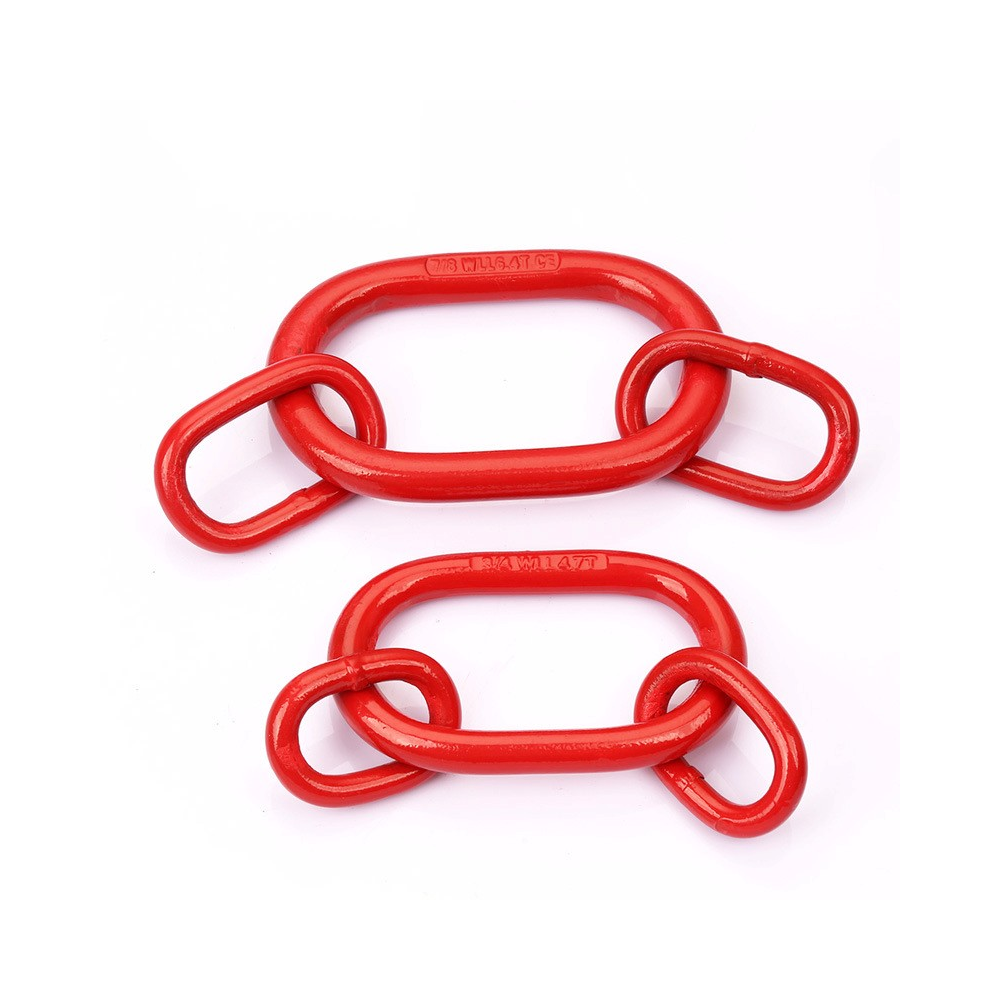

G80 MASTER LINK ASSEMBLY – US STANDARD A345
- Forged super alloy steel – Quenched and Tempered
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- Surface finish: Powder coated
- Color code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction
Specifications
| ITEM No. | TOTAL WEIGHT | CHAIN | 3 0R 4 LEG - WLL 45° | WLL ROPE | A | B | D | a | b | d |
|---|---|---|---|---|---|---|---|---|---|---|
| KG | INCH | T | T | mm | mm | mm | mm | mm | mm | |
| 8-YWH-92-3/4 | 1.55 | 1/4 | 3.15 | 5.6 | 140±5 | 70±4 | 20±1 | 85±4 | 40±3 | 14±0.5 |
| 5/16 | 4.25 | |||||||||
| 8-YWH-92-7/8 | 2.18 | 5/16 | 4.25 | 6.9 | 160±5 | 95±5 | 22±1 | 85±4 | 40±3 | 14±0.5 |
| 3/8 | 6.7 | |||||||||
| 8-YWH-92-1 | 3.29 | 3/8 | 6.7 | 11.8 | 178±5 | 89±4 | 25±1 | 100±4 | 60±4 | 18±0.5 |
| 8-YWH-92-1-1/4 | 7.18 | 1/2 | 11.2 | 17.7 | 220±6 | 110±5 | 32±1 | 100±4 | 60±4 | 22±1 |
| 5/8 | 17 | |||||||||
| 8-YWH-92-1-1/2 | 12.91 | 5/8 | 17 | 27.7 | 267±6 | 135±5 | 38 | 180±5 | 100±4 | 30±1 |
| 3/4 | 23.6 | |||||||||
| 8-YWH-92-1-3/4 | 21.25 | 3/4 | 23.6 | 38.5 | 305±7 | 152±5 | 45 | 180±5 | 100±4 | 32±1 |
| 7/8 | 31.5 | |||||||||
| 8-YWH-92-2 | 30.34 | 7/8 | 31.5 | 46.5 | 356±7 | 178±5 | 50±2 | 180±5 | 100±4 | 38±1 |
| 8-YWH-92-2-1/2 | 64.1 | 1 | 45 | 72.6 | 406±10 | 203±6 | 64±2 | 355±7 | 178±5 | 50±1 |
| 8-YWH-92-2-3/4 | 94.1 | 1-1/4 | 67 | 98.4 | 406±10 | 241±6 | 70±2 | 406±10 | 203±6 | 60±1 |
