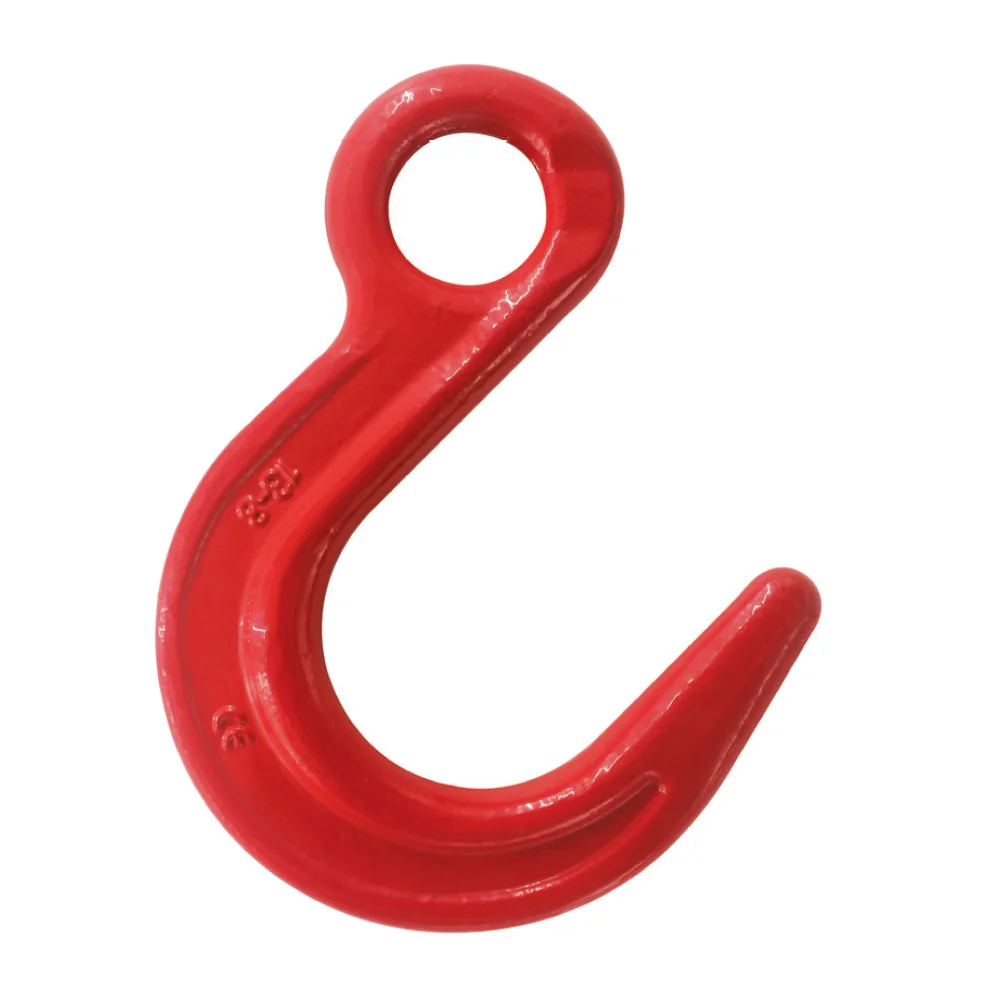

G80 Eye Foundry Hook

G80 Eye Foundry Hooks are a special purpose hook with wide throat opening which makes them capable of fitting around many large objects that standard slings hook simply cannot accommodate. Suitable for lifting purpose and foundry applications.

Before using this hook, check whether hooks without safety latches are allowed for your particular application.

Products Introduction

Product Features:

• Grade 80 Alloy Steel.

• Available in Clevis type.

• Painted finish.

• Working load limit permanently shown on the body.

Specifications

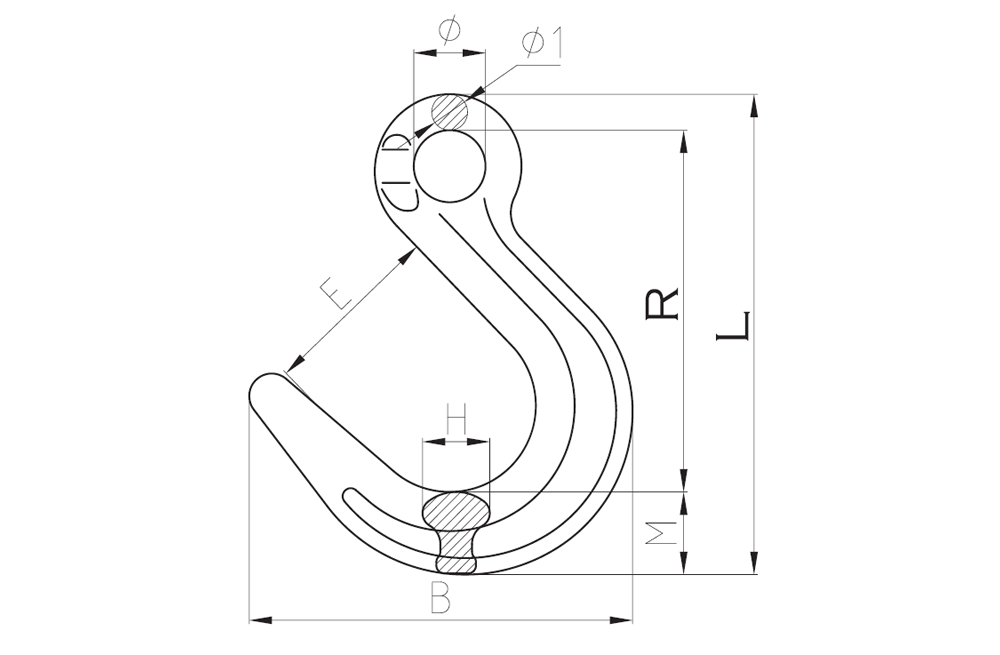

G80 EYE FOUNDRY HOOK
SIZE	WEIGHT	WLL	B.L	DIMENSIONS(MM)
MM	KG/PC	TON	TON	D	E	A	H	M	N	K	L
7/8	1.09	2	8	18	63.5	39	31	25.4	18	120	163
10	2.04	3.15	12.6	22	76	50.8	38	32.6	23	146	200
13	3.22	5.3	21.2	27	89	63.5	44.5	38.1	27	171	238
16	5.53	8	32	32	102	76	52	46	32	198	278
20	8.75	12.5	50	38	114.5	89	65	55	39	232	325
22	11.93	15	60	45	127.5	102	69	57	40	256	361
26	16.8	21.2	84.8	67.5	140	126	77	66	45	283	402
32	26.6	31.5	126	81.5	153.5	151.5	97.5	80	58	327	461
