G80 European Type Master Link
Alloy Steel Welded Master Link is great for overhead lifting, picking, placing, and towing applications. which are designed for attachment to mobile lifting equipment to provide a pick point for easy sling attachment and have a large weld pad.
Products Introduction
Product Features:
• Standard: EN1677-4 (Superseded DIN5688-3).
• Made by super alloy steel –Quenched and Tempered.
• Durable Powder Coated Finish.
• Individually proof test at 2.5 times Working Load Limit.
Specifications

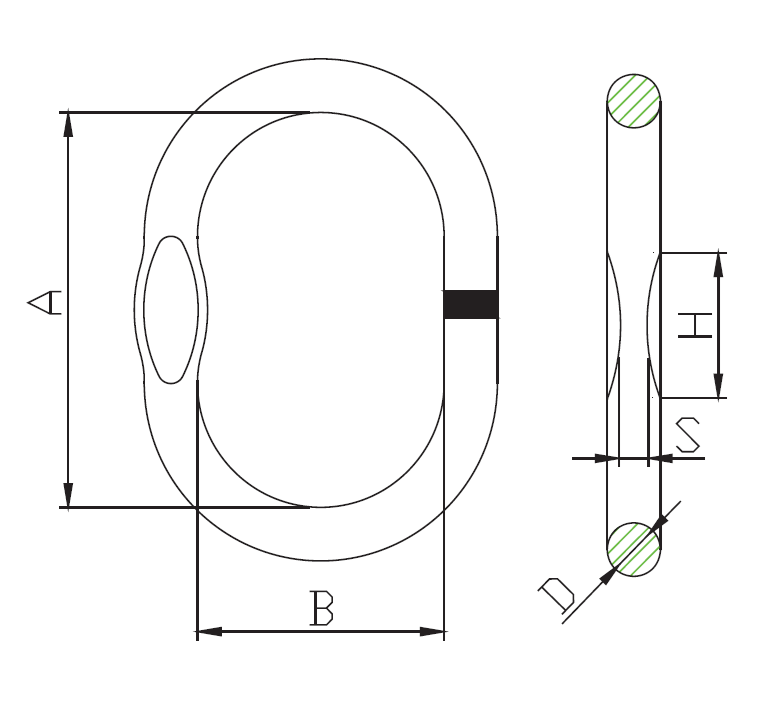

| G80 EUROPEAN TYPE MASTER LINK | |||||||
|---|---|---|---|---|---|---|---|
| SIZE | WEIGHT | WIL | FOR G80 CHAIN | A | B | D | |
| MM | KG/PC | TON | 1 LEG | 2 LEGS | MM | MM | MM |
| 7-6 | 0.34 | 1.6 | 7 | 6 | 110 | 60 | 13 |
| 8-7 | 0.54 | 2.12 | 8 | 7 | 110 | 60 | 16 |
| 10-8 | 0.82 | 3.15 | 10 | 8 | 135 | 75 | 18 |
| 13-10 | 1.5 | 5.3 | 12 | 10 | 160 | 90 | 22 |
| 16-13 | 2.3 | 8 | 16 | 13 | 180 | 100 | 26 |
| 18-16 | 3.95 | 11.2 | 18 | 16 | 200 | 110 | 32 |
| 20-18 | 6.34 | 14 | 20 | 18 | 260 | 140 | 36 |
| 22-20 | 8.96 | 17 | 22 | 20 | 300 | 160 | 40 |
| 26-22 | 12.8 | 21.2 | 26 | 22 | 340 | 180 | 45 |
| 32-26 | 16.55 | 31.5 | 32 | 26 | 350 | 190 | 50 |
| 36-32 | 23.28 | 45 | 36 | 32 | 400 | 200 | 56 |
| 40-36 | 32 | 56 | 40 | 36 | 430 | 220 | 63 |
| 72 | 45.76 | 63 | 45 | 40 | 460 | 250 | 72 |
| 80 | 62 | 85 | — | 45 | 500 | 270 | 80 |
