G8O CLEVIS SELF LOCKING HOOK
- Forged super alloy steel – Quenched and Tempered
- Suitable for EN818-2 G80 chain
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- Surface finish: Powder coated
- Colour code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction

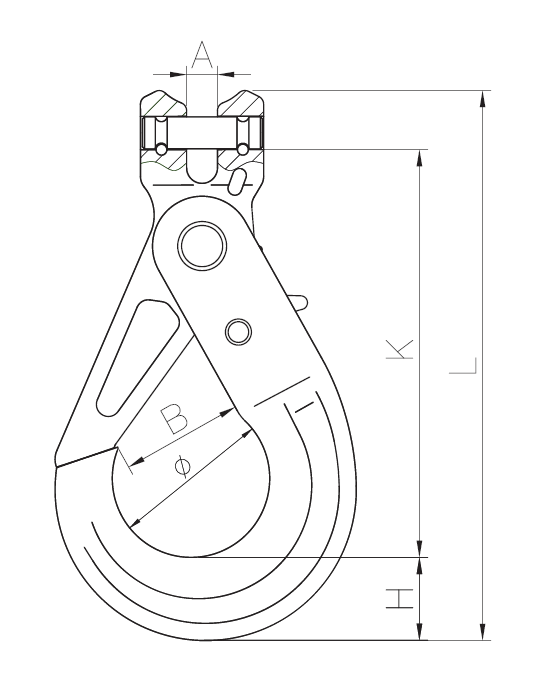

Specifications
| ITEM NO. | WEIGHT (kg) | WLL (T) | B.L (T) | A ±1.5 | B ±1.5 | K ±2 | H ±1 | L ±3 | Φ ±2 |
|---|---|---|---|---|---|---|---|---|---|
| 8–YWH335–6 | 0.5 | 1.12 | 4.48 | 7.5 | 28 | 96 | 20 | 131 | 34 |
| 8–YWH335–7/8 | 0.8 | 2 | 8 | 9.5 | 35 | 118.5 | 24 | 160 | 46 |
| 8–YWH335–10 | 1.42 | 3.15 | 12.6 | 12 | 45 | 144 | 28 | 194 | 58 |
| 8–YWH335–13 | 3 | 5.3 | 21.2 | 15 | 54 | 181.5 | 41 | 251 | 69 |
| 8–YWH335–16 | 5.8 | 8 | 32 | 17.5 | 60.5 | 216 | 50 | 302 | 86 |
| 8–YWH335–18/20 | 8.75 | 12.5 | 50 | 25 | 74.5 | 239 | 62 | 342 | 92 |
| 8–YWH335–22 | 12.3 | 15 | 60 | 25.5 | 80 | 276 | 65 | 391 | 98 |
| 8–YWH335–26 | 20.6 | 21.2 | 84.8 | 30 | 99 | 312 | 74 | 448 | 110 |
