G80 CLEVIS SLING HOOK WITH LATCH
- Forged super alloy steel – Quenched and Tempered
- Suitable for EN818-2 G80 chain
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- All load pins are 100% individually inspected and tested
- Cast latch available on request
- Surface finish: Powder coated
- Colour code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction
Specifications

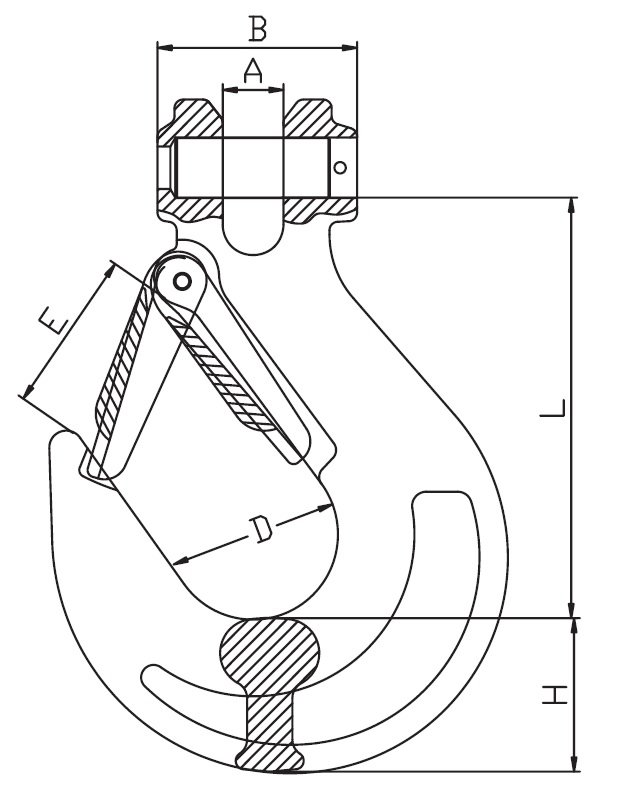

| ITEM No. | WEIGHT (kg) | WLL (T) | B.L (T) | A ±0.5 | B ±1.5 | D ±1 | H ±2 | L ±1 | E ±2 |
|---|---|---|---|---|---|---|---|---|---|
| YWH12–6 | 0.32 | 1.12 | 4.48 | 8 | 32 | 35 | 23 | 76 | 26 |
| YWH12–7/8 | 0.48 | 2 | 8 | 9.5 | 37 | 37 | 25 | 86.4 | 29 |
| YWH12–10 | 0.95 | 3.15 | 12.6 | 12.5 | 49 | 46 | 31 | 104 | 39 |
| YWH12–13 | 1.8 | 5.3 | 21.2 | 16.5 | 56.5 | 56 | 42.5 | 128 | 47.5 |
| YWH12–16 | 3.4 | 8 | 32 | 21.5 | 70.5 | 60 | 54 | 150 | 56 |
| YWH12–20 | 6 | 12.5 | 50 | 26 | 84 | 70 | 59 | 180 | 69 |
| YWH12–22 | 10.4 | 15 | 60 | 26 | 91 | 101 | 62 | 213 | 72 |
| YWH12–26 | 14.5 | 21.2 | 84.8 | 30 | 117 | 115 | 75 | 250 | 101 |
| YWH12–32 | 27 | 31.5 | 126 | 35 | 150 | 140 | 88 | 317 | 124 |
