G80 CLEVIS GRAB HOOK WITH CRADDLE
- Forged super alloy steel – Quenched and Tempered
- Suitable for EN818-2 G80 chain
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Breakage test
- 100% magnaflux crack detection
Products Introduction
Specifications

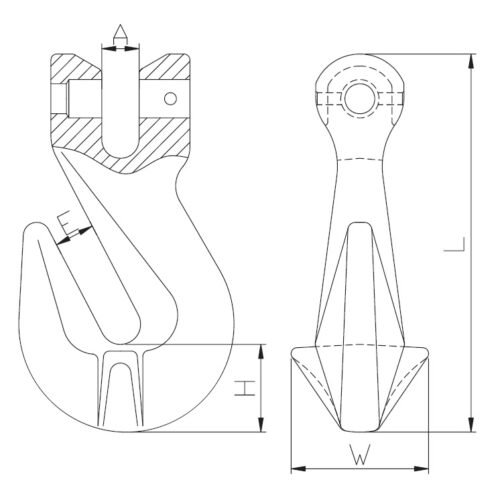

| ITEM NO. | WEIGHT (kg) | WLL (T) | B.L (T) | E ±1 | A ±0.5 | H ±1 | W ±1 | L ±2 |
|---|---|---|---|---|---|---|---|---|
| YWH86–6 | 0.25 | 1.12 | 4.48 | 8 | 8 | 17.7 | 21.5 | 77.3 |
| YWH86–7/8 | 0.32 | 2 | 8 | 10.5 | 9.5 | 18.5 | 33.5 | 89 |
| YWH86–10 | 0.73 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 |
| YWH86–13 | 1.6 | 5.3 | 21.2 | 16.5 | 15 | 42.7 | 57.5 | 163.5 |
| YWH86–16 | 2.8 | 8 | 32 | 19 | 18.5 | 45.4 | 74 | 183.5 |
| YWH86–20 | 5 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 |
| YWH86–22 | 6.3 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 |
| YWH86–26 | 14.5 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 309 |
