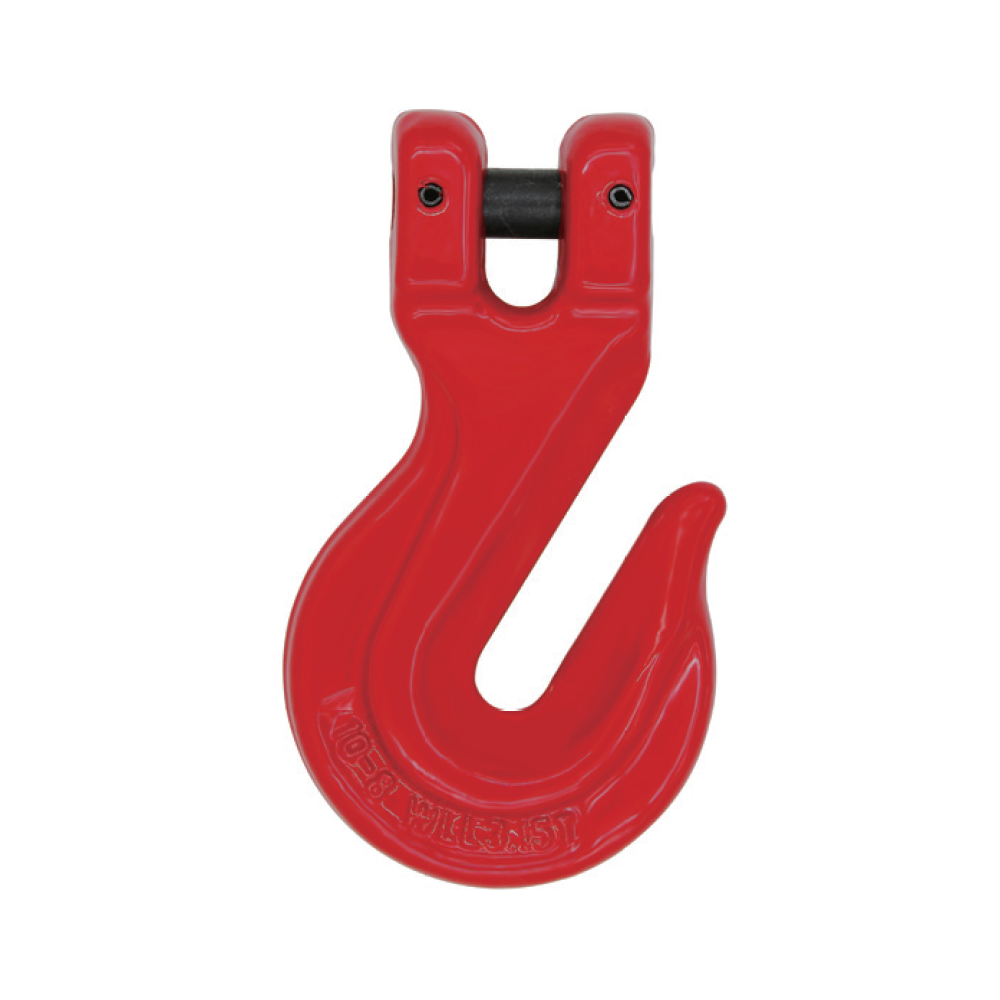

G80 CLEVIS GRAB HOOK
- Forged super alloy steel – Quenched and Tempered
- Suitable for EN818-2 G80 chain
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests are conducted on every batch
- 100% magnaflux crack detection
- Surface finish: Powder coated
- Color code:
- Red RAL3020
- Yellow RAL1003
- +86 0532 68722298
Products Introduction
Specifications

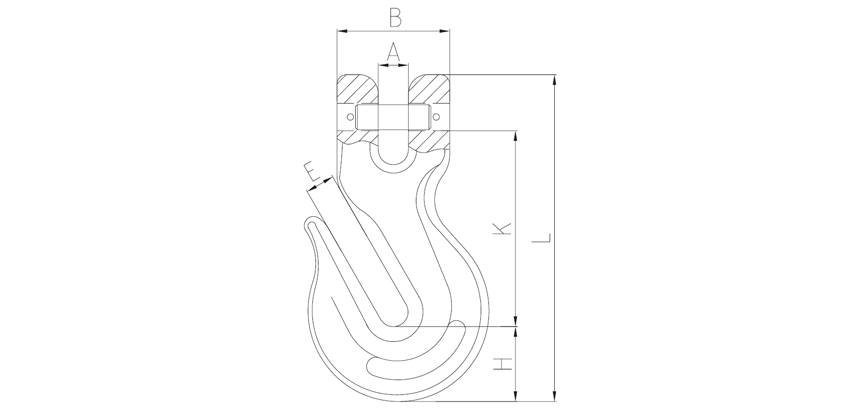

| ITEM NO. | WEIGHT (KG) | WLL (T) | B.L (T) | A ± 2 | B ± 2 | E ± 2 | H ± 3 | K ± 3 | L ± 3 |
|---|---|---|---|---|---|---|---|---|---|
| 8-YWH-28-1/4 | 0.22 | 1.2 | 4.8 | 8 | 34 | 8 | 19.5 | 57 | 90.5 |
| 8-YWH-28-9/32 | 0.31 | 2 | 8 | 9.5 | 41 | 9.5 | 23 | 65.3 | 106.5 |
| 8-YWH-28-3/8 | 0.7 | 3.2 | 12.8 | 12.7 | 46 | 12.5 | 31 | 82 | 137 |
| 8-YWH-28-1/2 | 1.8 | 5.4 | 21.6 | 16 | 61 | 16.7 | 43 | 113 | 184.5 |
| 8-YWH-28-5/8 | 3.1 | 8.2 | 32.8 | 19.5 | 68.5 | 20 | 49 | 129.5 | 215 |
| 8-YWH-28-3/4 | 4.1 | 12.8 | 51.2 | 24 | 88 | 24 | 58 | 152 | 254 |
| 8-YWH-28-7/8 | 6.2 | 15.5 | 62 | 27 | 101 | 26 | 64.8 | 178 | 295 |
