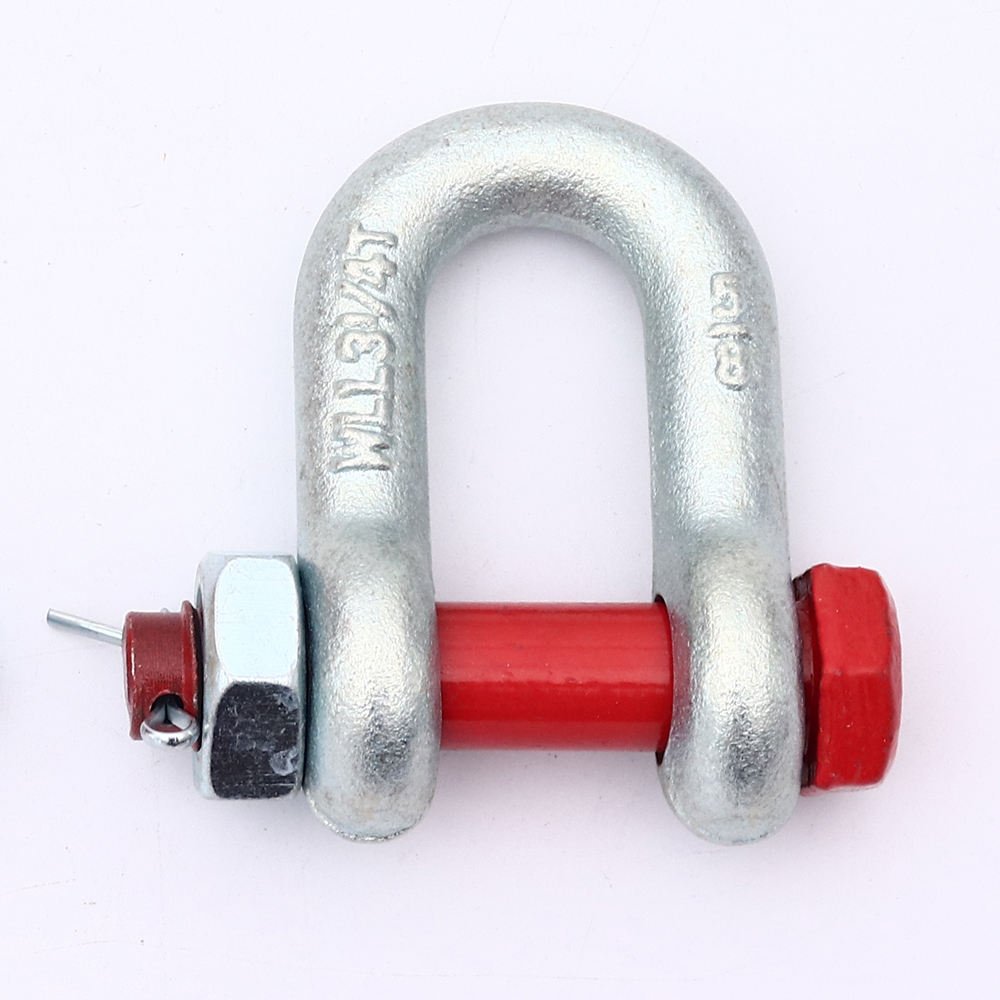

G2150 SAFETY BOLT CHAIN SHACKLE
- Permanent Identification: Working Load Limit markings shown on every shackle.

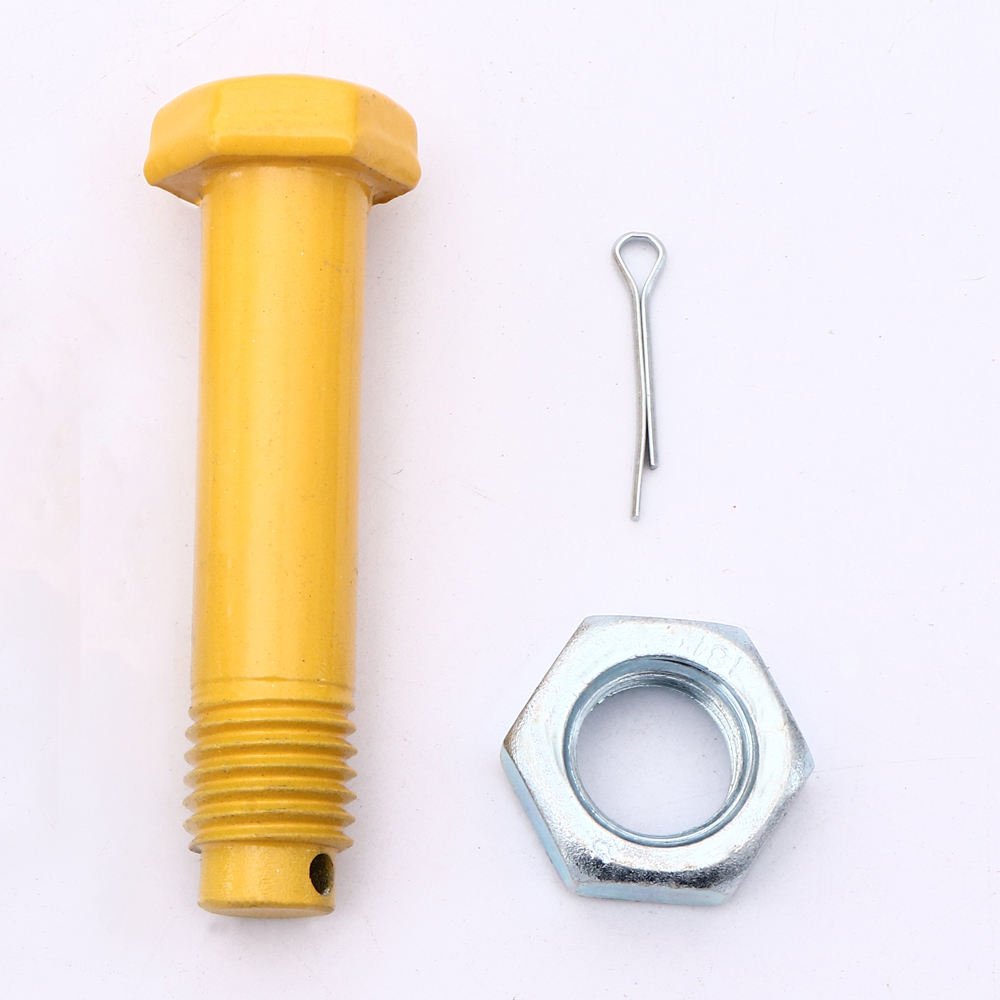

- Forged, Quenched & Tempered: High-strength alloy steel body with alloy bolts for maximum toughness and reliability.
- Finish Options: Hot-dip galvanized (G) stocked for corrosion resistance; self-colored (S) available by special order.
- Small Sizes: Sizes 3/8″ and below are mechanically galvanized.
- Fatigue Rated: Tested to 20 000 cycles at 1.5 × WLL (1/3 t – 55 t) for long service life.
- Temperature Range: Approved for use from −40 °F (−40 °C) to 400 °F (204 °C).
- Standards Compliance: Meets or exceeds ASME B30.26 requirements.
- +86 0532 68722298
Products Introduction
Specifications
| DIMENSIONS (INCH) | ||||||||||
| SIZE | WLL (T) | Weight (lb) | A | B | D | F | G | K | M | P |
| 1/4” | 0.5 | 0.13 | 0.47 | 0.31 | 0.25 | 0.62 | 0.91 | 1.59 | 0.97 | 1.56 |
| 5/16“ | 0.75 | 0.23 | 0.53 | 0.38 | 0.31 | 0.75 | 1.07 | 1.91 | 1.15 | 1.82 |
| 3/8” | 1 | 0.33 | 0.66 | 0.44 | 0.38 | 0.92 | 1.28 | 2.31 | 1.42 | 2.17 |
| 7/16“ | 1.5 | 0.49 | 0.75 | 0.50 | 0.44 | 1.06 | 1.48 | 2.67 | 1.63 | 2.51 |
| 1/2” | 2 | 0.75 | 0.81 | 0.64 | 0.50 | 1.18 | 1.66 | 3.03 | 1.81 | 2.80 |
| 5/8“ | 3.25 | 1.47 | 1.06 | 0.77 | 0.63 | 1.50 | 2.04 | 3.76 | 2.32 | 3.56 |
| 3/4“ | 4.75 | 2.52 | 1.25 | 0.89 | 0.75 | 1.81 | 2.40 | 4.53 | 2.75 | 4.15 |
| 7/8“ | 6.5 | 3.85 | 1.44 | 1.02 | 0.88 | 2.10 | 2.86 | 5.33 | 3.20 | 4.82 |
| 1” | 8.5 | 5.55 | 1.69 | 1.15 | 1.00 | 2.38 | 3.24 | 5.94 | 3.69 | 5.39 |
| 1-1/8“ | 9.5 | 7.6 | 1.81 | 1.25 | 1.13 | 2.68 | 3.61 | 6.78 | 4.07 | 5.90 |
| 1-1/4” | 12 | 10.81 | 2.03 | 1.40 | 1.25 | 3.00 | 3.97 | 7.50 | 4.53 | 6.69 |
| 1-3/8“ | 13.5 | 13.75 | 2.25 | 1.53 | 1.38 | 3.31 | 4.43 | 8.28 | 5.01 | 7.21 |
| 1-1/2” | 17 | 17.4 | 2.38 | 1.66 | 1.50 | 3.62 | 4.87 | 9.05 | 5.38 | 7.73 |
| 1-3/4“ | 25 | 31.4 | 2.88 | 2.04 | 1.75 | 4.19 | 5.82 | 10.97 | 6.38 | 9.33 |
| 2” | 35 | 46.75 | 3.25 | 2.30 | 2.10 | 5.00 | 6.82 | 12.74 | 7.25 | 10.41 |
| 2-1/2” | 55 | 85 | 4.12 | 2.80 | 2.63 | 5.68 | 8.07 | 14.85 | 9.38 | 13.58 |
| 3“ | 85 | 124.25 | 5.00 | 3.25 | 3.00 | 6.50 | 8.56 | 16.87 | 11.00 | 15.13 |
