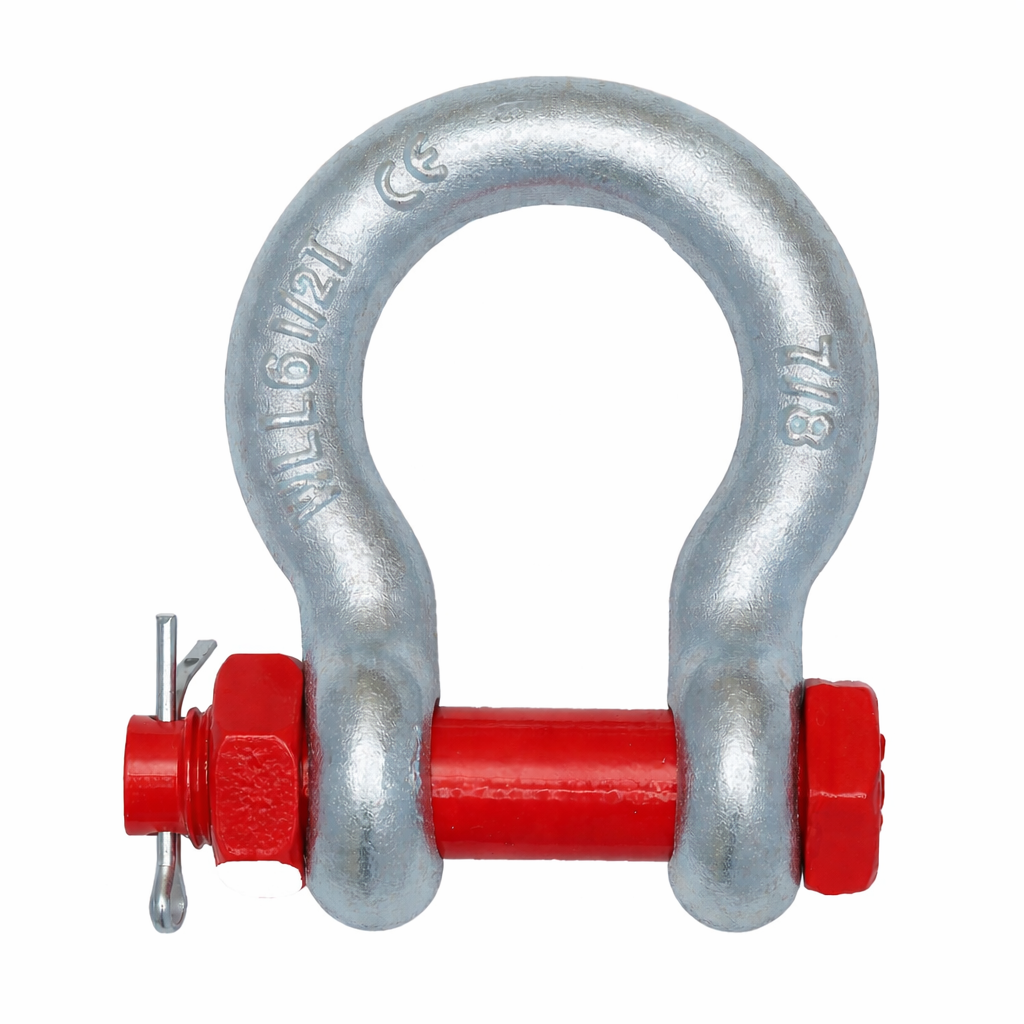

G2130 SAFETY BOLT ANCHOR SHACKLE
- Permanent Identification: Working Load Limit markings shown on every shackle.
- Forged, Quenched & Tempered: High-strength alloy steel body with alloy bolts for maximum toughness and reliability.
- Finish Options: Hot-dip galvanized (G) stocked for corrosion resistance; self-colored (S) available by special order.
- Small Sizes: Sizes 3/8″ and below are mechanically galvanized.
- Fatigue Rated: Tested to 20 000 cycles at 1.5 × WLL (1/3 t – 55 t) for long service life.
- Temperature Range: Approved for use from −40 °F (−40 °C) to 400 °F (204 °C).
- Standards Compliance: Meets or exceeds ASME B30.26 requirements.
- +86 0532 68722298
Products Introduction
Specifications
| DIMENSION (INCH) | ||||||||||||
| Size | WLL (t) | Weight (lb) | A | B | C | D | E | F | G | H | I | M |
| 3/16" | 0.33 | 0.06 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 1.47 | 0.98 | 0.19 | 1.29 |
| 1/4" | 0.5 | 0.11 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.84 | 1.28 | 0.25 | 1.56 |
| 5/16" | 0.75 | 0.22 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 2.09 | 1.47 | 0.31 | 1.82 |
| 3/8" | 1 | 0.33 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.49 | 1.78 | 0.38 | 2.17 |
| 7/16" | 1.5 | 0.49 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.91 | 2.03 | 0.44 | 2.51 |
| 1/2" | 2 | 0.79 | 0.81 | 0.64 | 1.88 | 0.5 | 1.31 | 1.19 | 3.28 | 2.31 | 0.5 | 2.8 |
| 5/8" | 3.25 | 1.68 | 1.06 | 0.77 | 2.38 | 0.63 | 1.69 | 1.5 | 4.19 | 2.94 | 0.69 | 3.56 |
| 3/4" | 4.75 | 2.72 | 1.25 | 0.89 | 2.81 | 0.75 | 2 | 1.81 | 4.97 | 3.5 | 0.81 | 4.15 |
| 7/8" | 6.5 | 3.95 | 1.44 | 1.02 | 3.31 | 0.88 | 2.28 | 2.09 | 5.83 | 4.03 | 0.97 | 4.82 |
| 1" | 8.5 | 5.66 | 1.69 | 1.15 | 3.75 | 1 | 2.69 | 2.38 | 6.56 | 4.69 | 1.06 | 5.39 |
| 1-1/8" | 9.5 | 8.27 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 7.47 | 5.16 | 1.25 | 5.9 |
| 1-1/4" | 12 | 11.71 | 2.03 | 1.4 | 4.69 | 1.29 | 3.25 | 3 | 8.25 | 5.75 | 1.38 | 6.69 |
| 1-3/8" | 13.5 | 15.83 | 2.25 | 1.53 | 5.25 | 1.42 | 3.63 | 3.31 | 9.16 | 6.38 | 1.5 | 7.21 |
| 1-1/2" | 17 | 19 | 2.38 | 1.66 | 5.75 | 1.53 | 3.88 | 3.63 | 10 | 6.88 | 1.62 | 7.73 |
| 1-3/4" | 25 | 33.91 | 2.88 | 2.04 | 7 | 1.84 | 5 | 4.19 | 12.34 | 8.8 | 2.25 | 9.68 |
| 2" | 35 | 52.25 | 3.25 | 2.3 | 7.75 | 2.08 | 5.75 | 4.81 | 13.68 | 10.15 | 2.4 | 10.81 |
| 2-1/2" | 55 | 98.25 | 4.13 | 2.8 | 10.5 | 2.71 | 7.25 | 5.69 | 17.9 | 12.75 | 3.13 | 13.58 |
| 3" | 85 | 154 | 5 | 3.3 | 13 | 3.12 | 7.88 | 6.5 | 21.5 | 14.62 | 3.62 | 15.13 |
| 3-1/2" | 120 | 265 | 5.25 | 3.76 | 14.63 | 3.62 | 9 | 8 | 24.88 | 17.02 | 4.38 | 17 |
| 4" | 150 | 338 | 5.5 | 4.26 | 14.5 | 4 | 10 | 9 | 25.68 | 18 | 4.56 | 17.75 |
