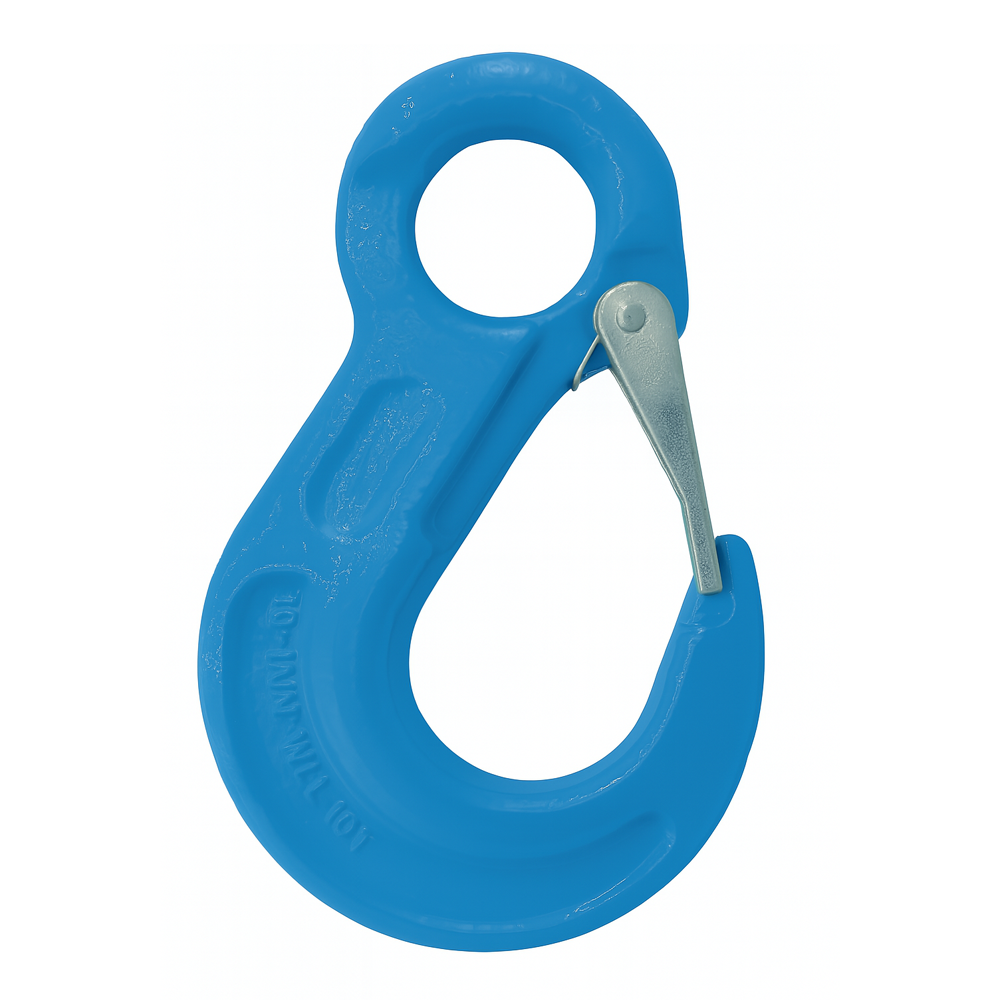

G100 SLING HOOK WITH LATCH – EYE TYPE
- Forged super alloy steel – Quenched and Tempered
- Suitable for G100 chain
- 25% stronger than G80
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests conducted on each batch
- 100% magnaflux crack detection
- All load pins are 100% individually inspected and tested
- Surface finish: Powder coated
- Color code: Blue RAL5015
- +86 0532 68722298
Products Introduction

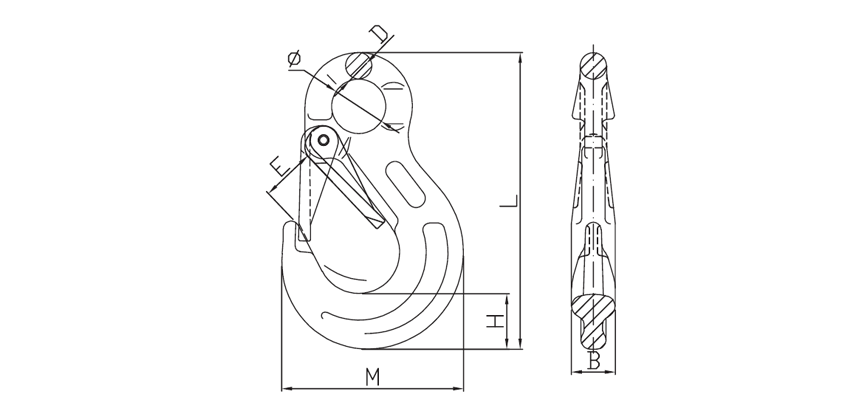

Specifications
| ITEM NO. | WEIGHT (kg) | WLL (T) | B.L (T) | B ±1 | D ±1 | E ±2 | H ±1 | Ø ±1 | M ±2 | L ±2.5 |
|---|---|---|---|---|---|---|---|---|---|---|
| 10-YWH1003-06 | 0.32 | 1.4 | 5.6 | 16.5 | 10 | 18.5 | 21 | 20.5 | 68 | 111 |
| 10-YWH1003-07 | 0.4 | 1.9 | 7.6 | 15 | 11 | 25.5 | 26 | 25 | 86.9 | 137 |
| 10-YWH1003-08 | 0.6 | 2.5 | 10 | 19 | 11 | 25 | 27.5 | 25 | 87.6 | 137 |
| 10-YWH1003-10 | 1.2 | 4 | 16 | 26 | 16 | 29.5 | 32 | 35 | 106.4 | 171.5 |
| 10-YWH1003-13 | 2.2 | 6.7 | 26.8 | 33 | 19 | 38 | 43.5 | 43 | 134 | 219 |
| 10-YWH1003-16 | 3.5 | 10 | 40 | 40 | 24.5 | 46 | 50 | 51 | 158 | 260 |
| 10-YWH1003-20 | 6.2 | 16 | 64 | 50 | 27 | 52 | 56 | 55 | 190 | 298 |
| 10-YWH1003-22 | 11.5 | 19 | 76 | 60 | 29 | 66 | 62 | 60 | 214 | 330 |
| 10-YWH1003-26 | 12.2 | 26.5 | 106 | 63 | 35 | 73 | 75 | 70 | 245 | 376 |
| 10-YWH1003-32 | 17.5 | 39.3 | 157.2 | 71 | 39 | 87 | 89 | 81.5 | 270 | 458 |
