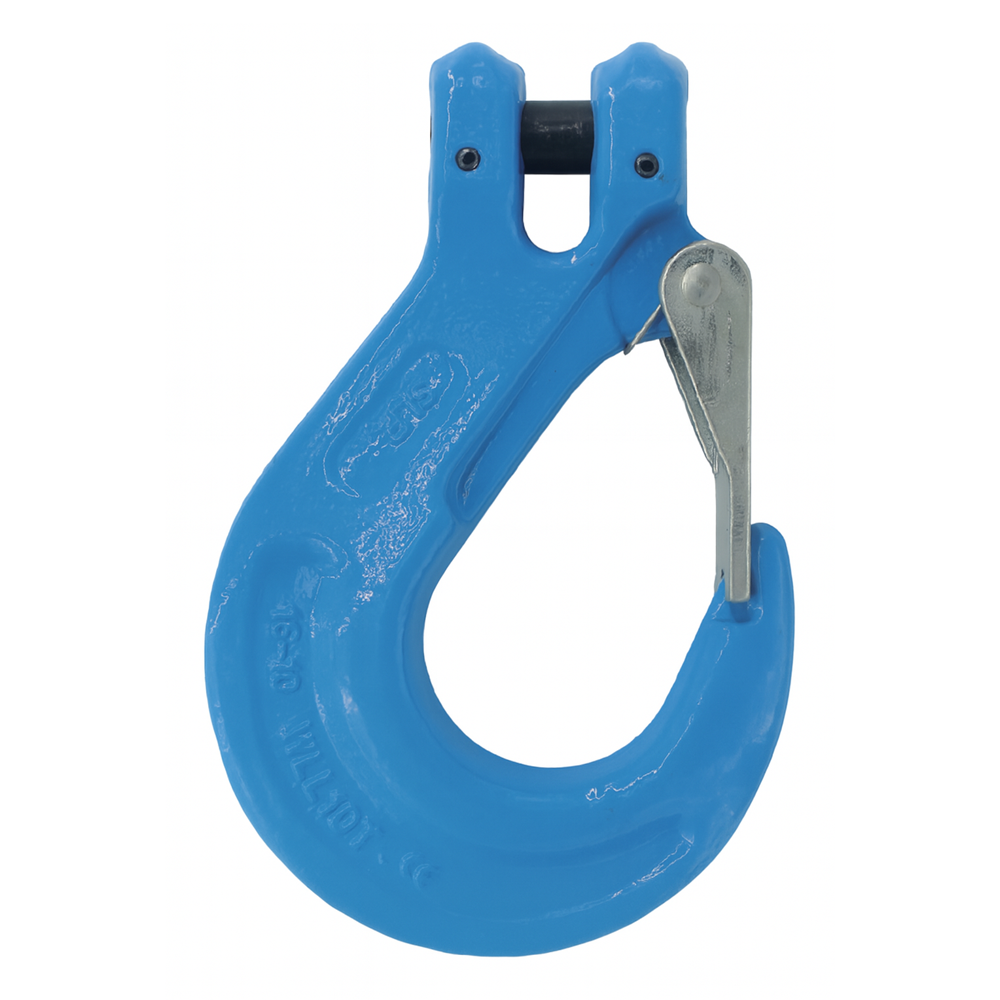

G100 SLING HOOK WITH LATCH – CLEVIS TYPE
- Forged super alloy steel – Quenched and Tempered
- Suitable for G100 chain
- 25% stronger than G80
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests conducted on each batch
- 100% magnaflux crack detection
- All load pins are 100% individually inspected and tested
- Surface finish: Powder coated
- Color code: Blue RAL5015
- +86 0532 68722298
Products Introduction
Specifications

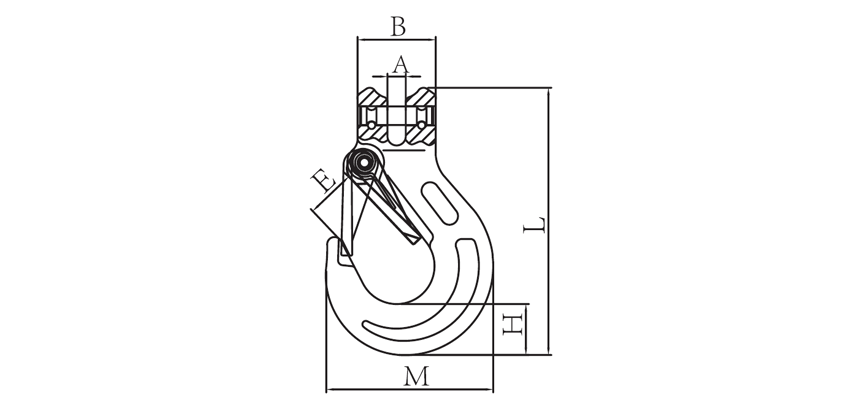

| ITEM CODE | WEIGHT (KG) | WLL (T) | B.L (T) | A ±0.5 | B ±1 | E ±1.5 | H ±1 | M ±2 | L ±2.5 |
|---|---|---|---|---|---|---|---|---|---|
| 10-YWH1004-06 | 0.33 | 1.4 | 5.6 | 7.5 | 32 | 18.5 | 21 | 68.5 | 109 |
| 10-YWH1004-08 | 0.7 | 2.5 | 10 | 9.5 | 37 | 25 | 27.5 | 88 | 134 |
| 10-YWH1004-10 | 1.3 | 4 | 16 | 12 | 48 | 28 | 33.5 | 105.5 | 161.5 |
| 10-YWH1004-13 | 2.3 | 6.7 | 26.8 | 15 | 59 | 38 | 42 | 134 | 203 |
| 10-YWH1004-16 | 3.6 | 10 | 40 | 18.5 | 70 | 44 | 50 | 160.5 | 248 |
| 10-YWH1004-20 | 7 | 16 | 64 | 25 | 85 | 52 | 56 | 190.5 | 297 |
| 10-YWH1004-22 | 12.1 | 19 | 76 | 27 | 100 | 66 | 62 | 214.5 | 326 |
