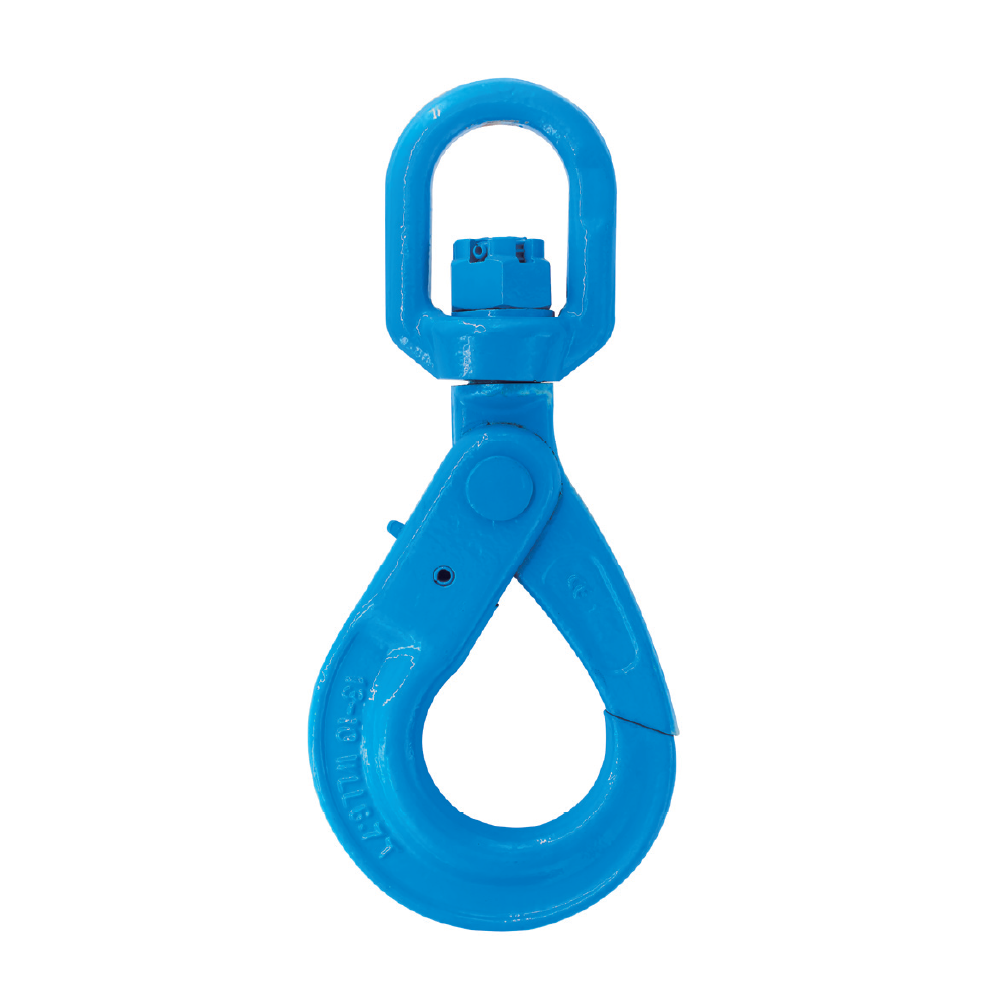

G100 SELF LOCKING SAFETY HOOK – SWIVEL TYPE
- Forged super alloy steel – Quenched and Tempered
- Suitable for G100 chain
- 25% stronger than G80
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests conducted on each batch
- 100% magnaflux crack detection
- All load pins are 100% individually inspected and tested
- Surface finish: Powder coated
- Color code: Blue RAL5015
- +86 0532 68722298
Products Introduction
Specifications

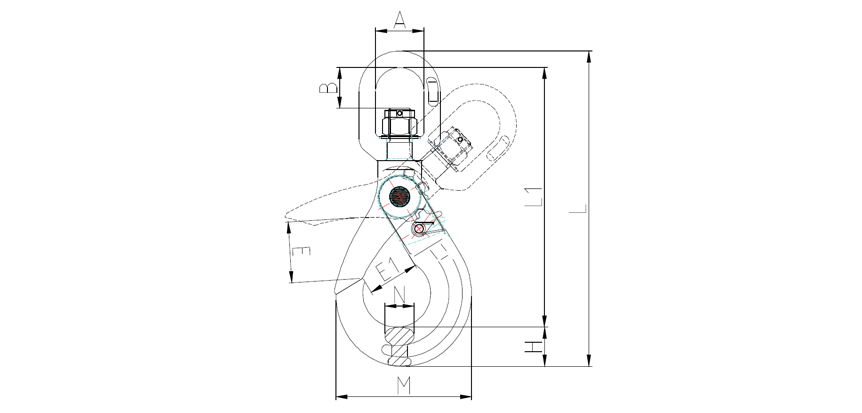

| ITEM CODE | WEIGHT (KG) | WLL (T) | B.L (T) | A | B | E1 | E | M | N | L1 | L |
| 10-YWH1007-06 | 0.6 | 1.4 | 5.6 | 32.5±2 | 23±2 | 27±2 | 30±2 | 70±2 | 15±1 | 152.5±4 | 184±5 |
| 10-YWH1007-08 | 1.1 | 2.5 | 10 | 36±2 | 27.5±2 | 35±3 | 38±3 | 90±3 | 20±1 | 188±4 | 226±6 |
| 10-YWH1007-10 | 2 | 4 | 16 | 42±3 | 33±2 | 43±3 | 52±3 | 108±3 | 26±2 | 225.5±5 | 269±6 |
| 10-YWH1007-13 | 4 | 6.7 | 26.8 | 50±3 | 39±3 | 51.5±3 | 64±4 | 137.5±4 | 32.5±2 | 270±5 | 327±7 |
| 10-YWH1007-16 | 6.8 | 10 | 40 | 70±4 | 56±4 | 59±4 | 70.5±4 | 170.5±4 | 38±2 | 342±6 | 413±7 |
| 10-YWH1007-20 | 12.5 | 16 | 64 | 72±4 | 61±4 | 74.5±4 | 77±5 | 191.5±5 | 50±3 | 373±6 | 460±8 |
| 10-YWH1007-22 | 17.1 | 19 | 76 | 97±5 | 96±5 | 78±4 | 92±5 | 205±5 | 52±3 | 468±7 | 566±8 |
