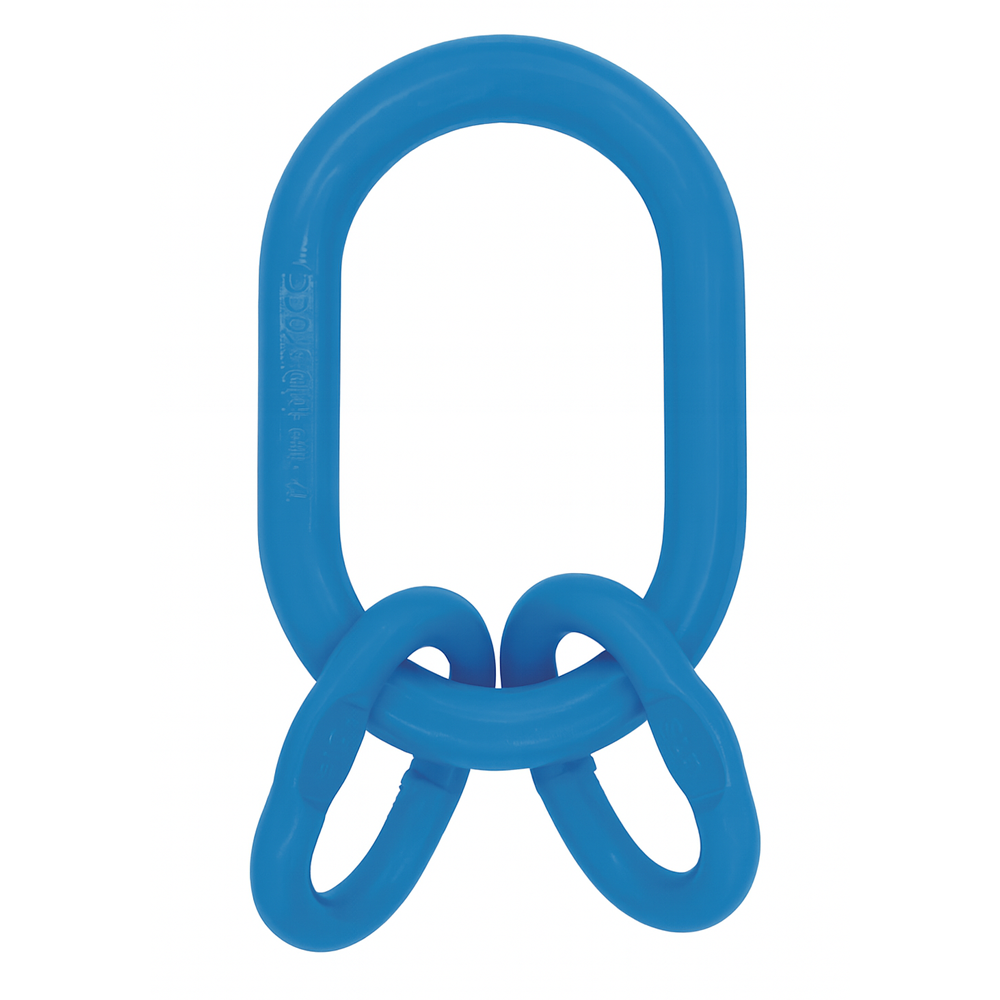

G100 MASTER LINK ASSEMBLY
- Forged super alloy steel – Quenched and Tempered
- Suitable for G100 chain
- 25% stronger than G80
- Individually proof test at 2.5 times Working Load Limit
- Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
- Random tensile tests conducted on each batch
- 100% magnaflux crack detection
- All load pins are 100% individually inspected and tested
- Surface finish: Powder coated
- Color code: Blue RAL5015
- +86 0532 68722298
Products Introduction
Specifications

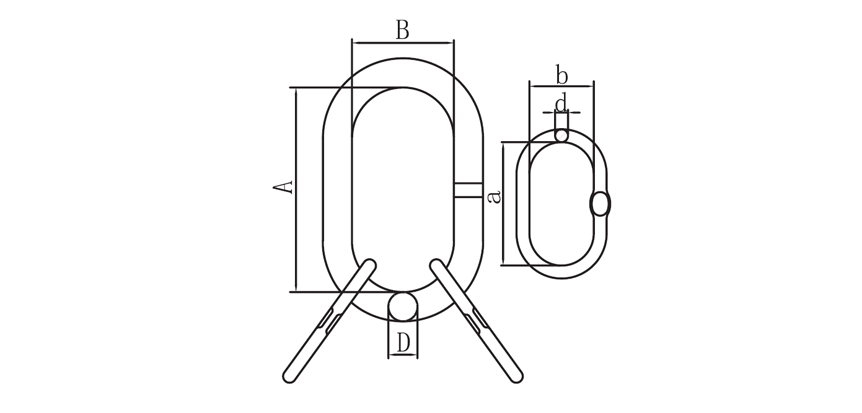

| ITEM CODE | G100 CHAIN SIZE | WEIGHT | WLL | DIMENSION (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 3 OR 4 LEGS SLING | KG | T | A | B | D | a | b | d | |
| 10–YWH1012–06 | 6mm | 1.3 | 3 | 135 | 75 | 19 | 84 | 25 | 13 |
| 10–YWH1012–08 | 8mm | 2.33 | 5.3 | 160 | 90 | 23 | 70 | 35 | 16.5 |
| 10–YWH1012–10 | 10mm | 3.7 | 8 | 180 | 100 | 27 | 85 | 40 | 19 |
| 10–YWH1012–13 | 13mm | 6.5 | 14 | 200 | 110 | 33 | 115 | 50 | 23 |
| 10–YWH1012–16 | 16mm | 10.1 | 21.2 | 260 | 140 | 36 | 140 | 65 | 27 |
| 10–YWH1012–20 | 19/20mm | 22.8 | 33.6 | 350 | 190 | 50 | 150 | 70 | 33 |
| 10–YWH1012–22 | 22mm | 26 | 33.9 | 350 | 190 | 50 | 180 | 100 | 36 |
