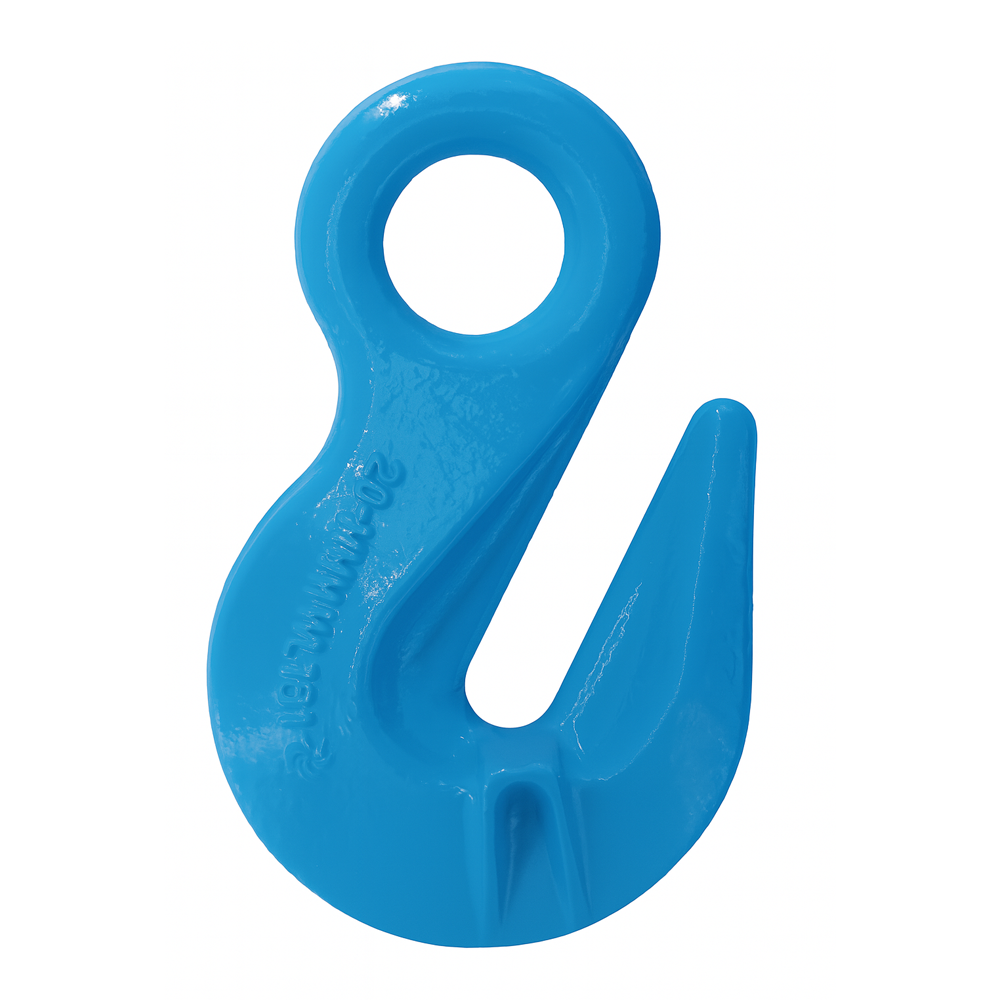

G100 GRAB HOOK WITH CRADDLE – EYE TYPE

  • Forged super alloy steel – Quenched and Tempered
  • Suitable for G100 chain
  • 25% stronger than G80
  • Individually proof test at 2.5 times Working Load Limit
  • Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
  • Random tensile tests conducted on each batch
  • 100% magnaflux crack detection
  • All load pins are 100% individually inspected and tested
  • Surface finish: Powder coated
    • Color code: Blue RAL5015

Products Introduction

Specifications

ITEM NO.WEIGHT (kg)WLL (T)B.L (T)E ±1B ±1D ±1.5M ±2L ±3
10-YWH1008-060.151.45.6813.530.543.573
10-YWH1008-080.32.5101117.5375393
10-YWH1008-100.7941613.52248.574129
10-YWH1008-131.676.726.816.5285996166
10-YWH1008-162.741040193675116186
10-YWH1008-204.7216642443.589.5143227
10-YWH1008-228.219762748.5100.5160.5260.5
