G100 Eye Grab Hook is used for shortening and for slings that must not tighten. Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The eye is designed for ease of connection of coup-link. G100 Eye Grab Hook support to suit 6mm 8mm 10mm 13mm 16mm 20mm and 22mm G100 Chain.

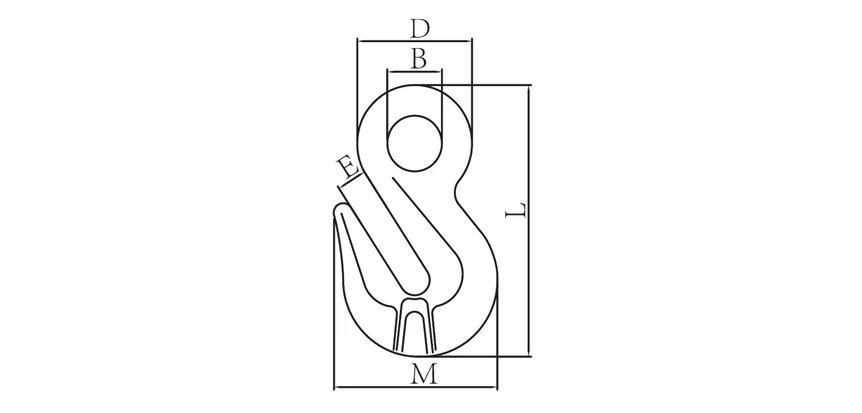

G100 EYE SHORTENING GRAB HOOK WITH WINGS | ||||||||
SIZE | WEIGHT | WLL | B.L | DIMENSIONS(MM) | ||||
MM | KG/PC | TON | TON | E | B | D | M | L |
6 | 0.2 | 1.4 | 5.6 | 8 | 14.5 | 30.5 | 43.5 | 71 |
8 | 0.28 | 2.5 | 10 | 10.8 | 18 | 37 | 53 | 91.5 |
10 | 0.72 | 4 | 16 | 13.5 | 22.5 | 48.5 | 72 | 127.5 |
13 | 1.6 | 6.7 | 26.8 | 16.5 | 28 | 59 | 96 | 163 |
16 | 2.45 | 10 | 40 | 19.2 | 36 | 74 | 112.5 | 183 |
20 | 4.72 | 16 | 64 | 24 | 43.5 | 89.5 | 143 | 227 |
22 | 8.2 | 19 | 76 | 27 | 48.5 | 100.5 | 160.5 | 260.5 |
