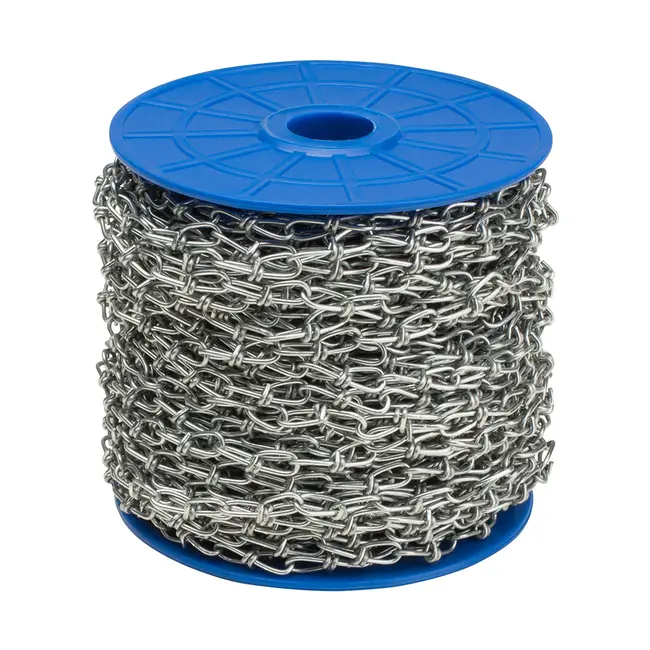

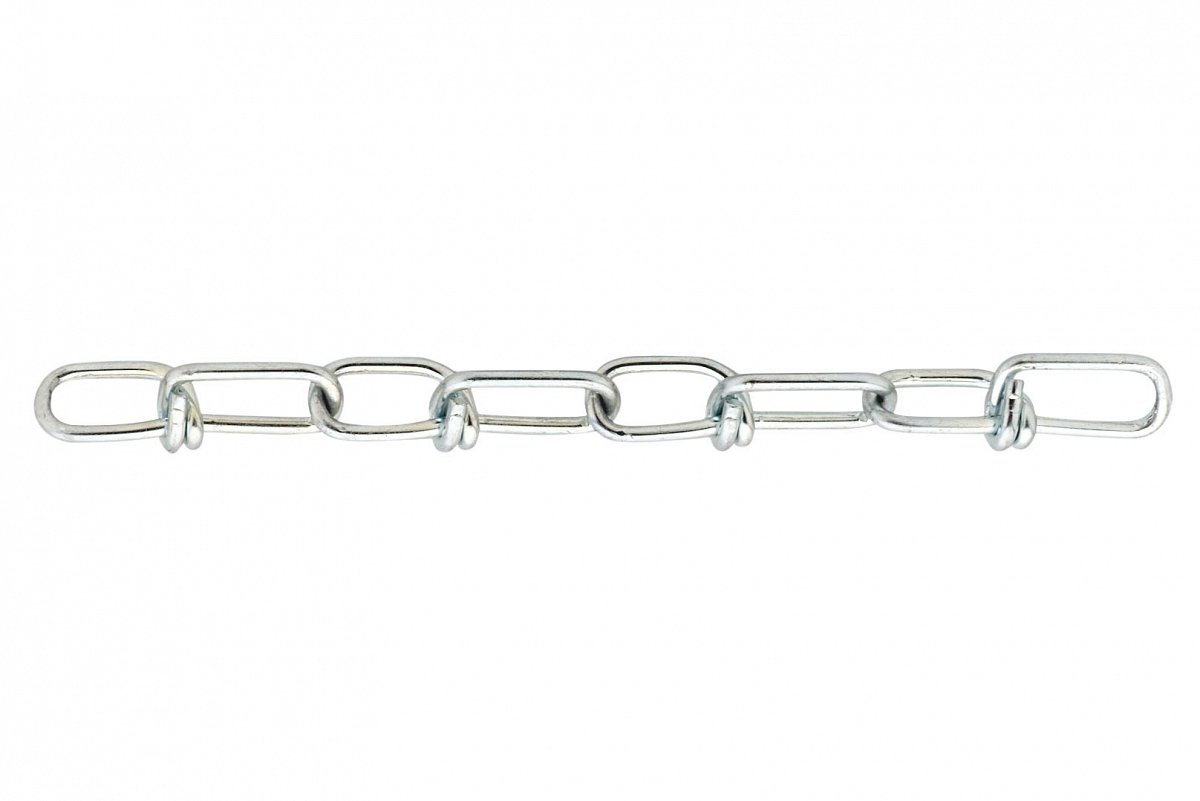

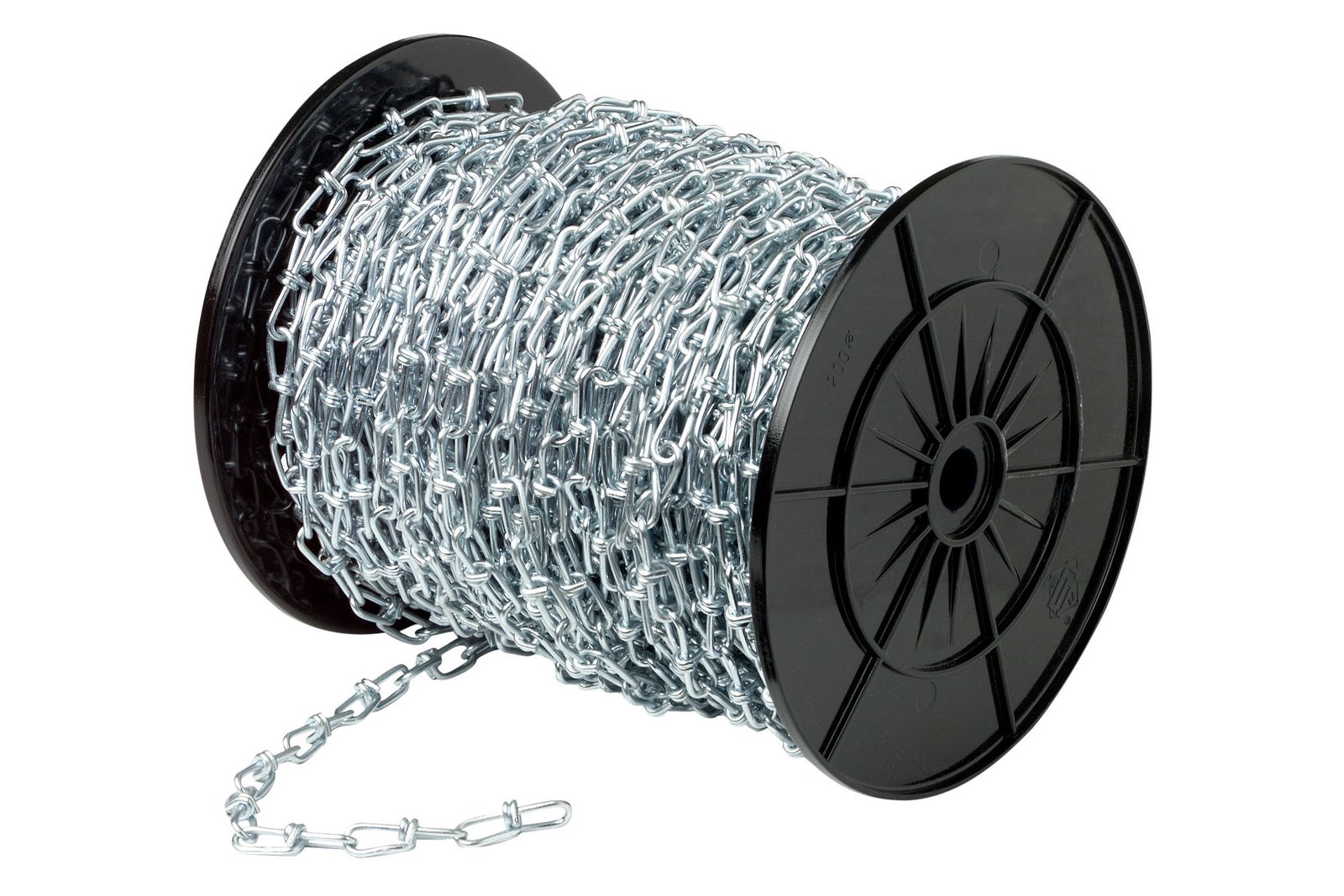

DIN5686 KNOTTED CHAIN
- GENERAL PURPOSE WELDLESS UTILITY CHAIN
- COMMONLY USED FOR
- HANGING OF LIGHT FIXTURES
- PORCH SWINGS
- PLAYGROUND
- GYM EQUIPMENT
- ANIMAL CHAINS
- FARM
- MANUFACTURING APPLICATIONS
- MATERIAL: LOW CARBON STEEL
- SURFACE FINISHES:
- SELF-COLOR
- ZINC PLATED
- HOT DIP GALVANIZED
- POLYCOATED
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !
NOT FOR OVERHEAD LIFTING
- +86 0532 68722298
Products Introduction
Specifications

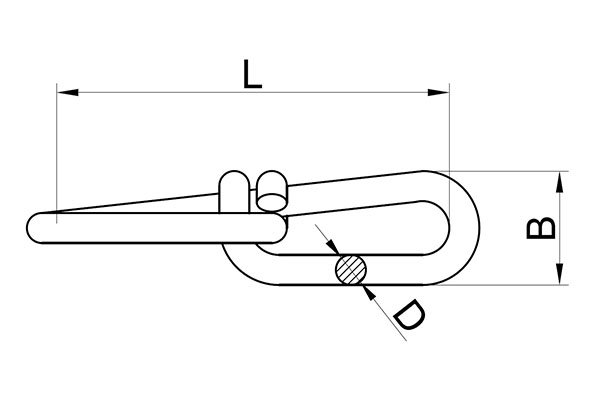

| NO. | DIAMETER | INSIDE LENTH | OUTSIDE WIDTH | BREAKING LOAD | WEIGHT PER 100M |
|---|---|---|---|---|---|
| (D) MM | (L) MM | (B) MM | KG | KG | |
| 14 | 1.4 | 21 | 6.5 | 16 | 4.2 |
| 16 | 1.6 | 23 | 7 | 22 | 6 |
| 20 | 1.8 | 26 | 8 | 30 | 7.3 |
| 22 | 2 | 28 | 9 | 40 | 9 |
| 25 | 2.2 | 31 | 10 | 50 | 11 |
| 27 | 2.5 | 35 | 11 | 70 | 14 |
| 30 | 2.8 | 39 | 12.5 | 90 | 17 |
| 32 | 3.1 | 41 | 14 | 120 | 21 |
| 35 | 3.4 | 44 | 15 | 140 | 26 |
| 40 | 3.8 | 46 | 17 | 160 | 34 |
| 45 | 4.2 | 50 | 19 | 170 | 41 |
| 50 | 4.6 | 55 | 20.5 | 180 | 50 |
| 55 | 5 | 60 | 22.5 | 190 | 57 |
