G80 ALLOY CHAIN SLINGS
G80 Chain Safety Guidelines
- Do not exceed the rated Working Load Limit (WLL)
- Use only G80 chains for lifting and rigging applications
- Always use compatible slings and accessories for the load
- Do not exceed a sling angle of 30°
- Inspect before use for deformation, cracks, corrosion, or wear
- Replace immediately if any damage or wear (over 5%) is found
- Do not use damaged or improperly repaired chains
- Perform regular inspections and keep proper records
- +86 0532 68722298
Products Introduction

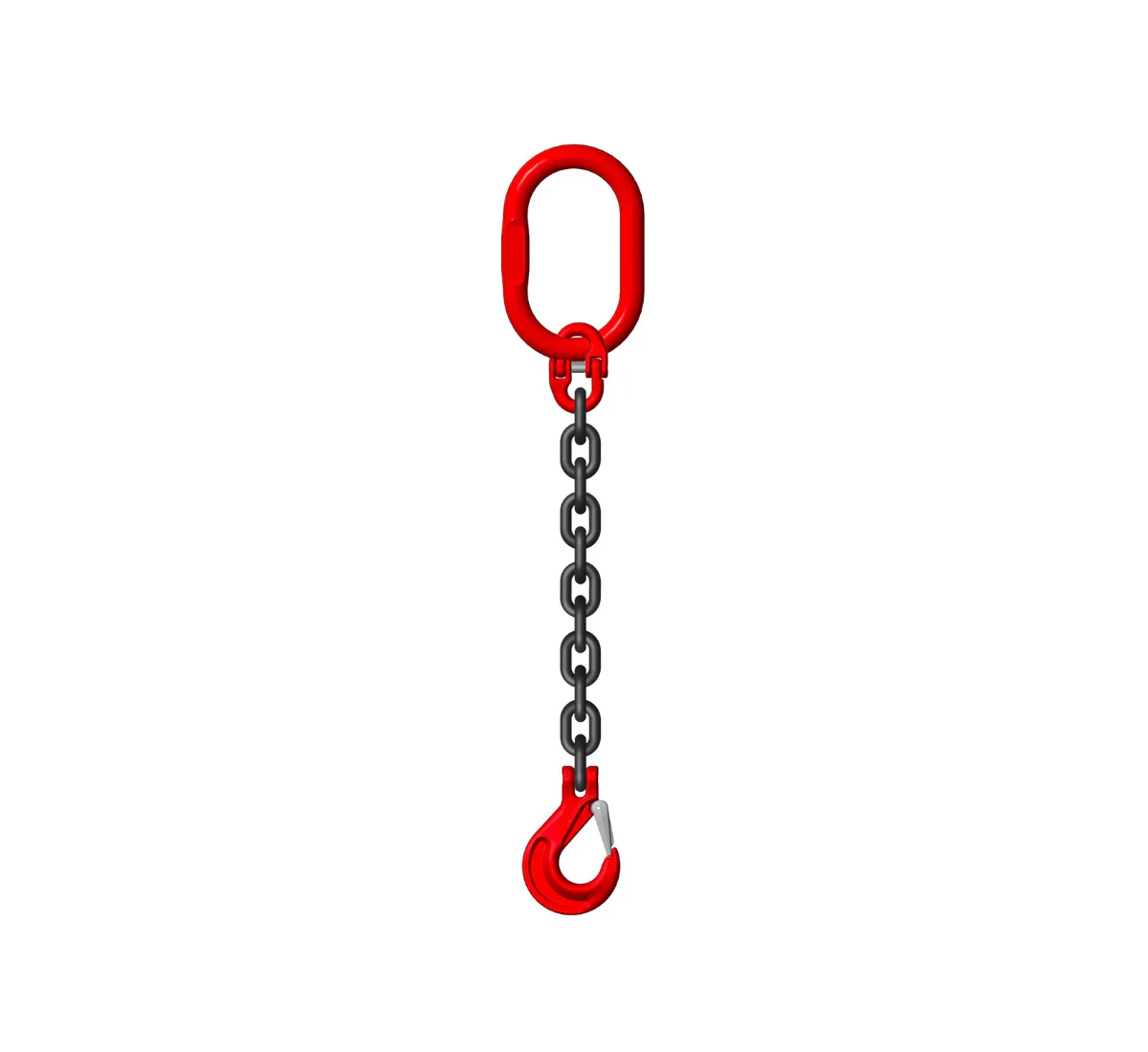

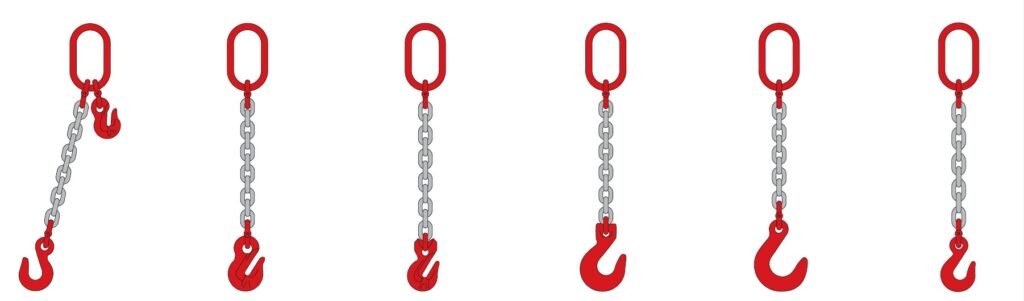

SINGLE LEG CHAIN SLING

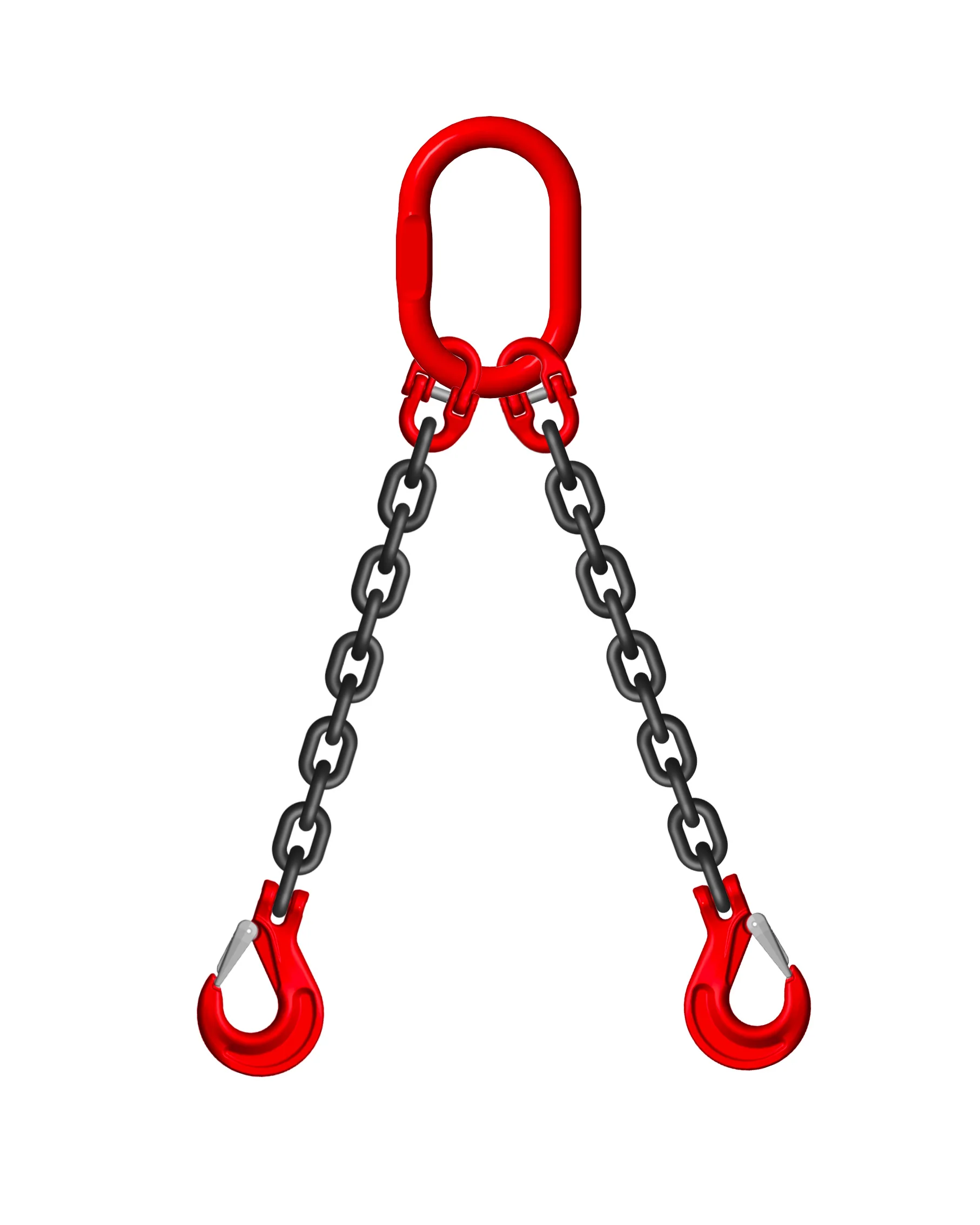

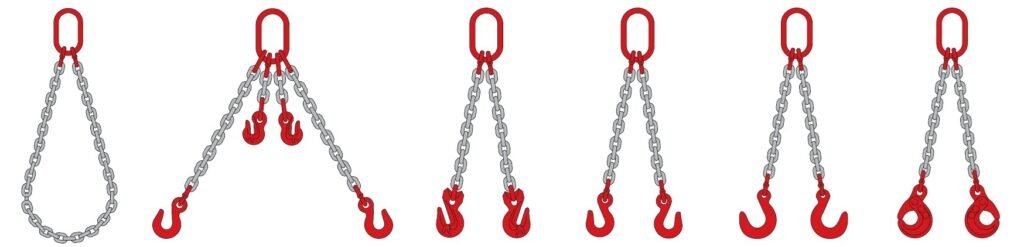

DOUBLE LEGS CHAIN SLING

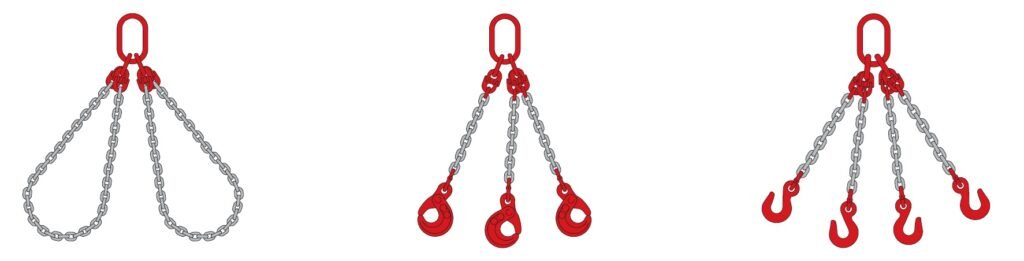

TRIPLE & QUAD LEGS CHAIN SLING
Specifications
| CHAIN SIZE | 1 LEG | 2 LEGS | 3 LEGS & 4 LEGS | ||
|---|---|---|---|---|---|

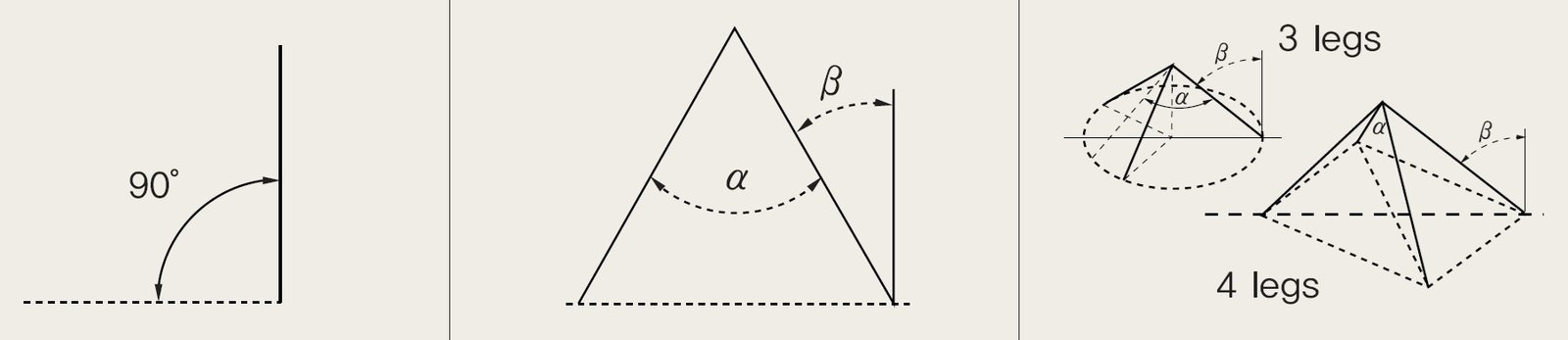

| β 0~45° / α 0~90° | β 45°~60° / α 90°~120° | β 0~45° / α 0~90° | β 45°~60° / α 90°~120° | ||
| mm | T | T | T | T | T |
| 6 | 1.12 | 1.6 | 1.12 | 2.36 | 1.7 |
| 7 | 1.5 | 2.12 | 1.5 | 3.15 | 2.24 |
| 8 | 2 | 2.8 | 2 | 4.25 | 3 |
| 10 | 3.15 | 4.25 | 3.15 | 6.7 | 4.75 |
| 13 | 5.3 | 7.5 | 5.3 | 11.2 | 8 |
| 16 | 8 | 11.2 | 8 | 17 | 11.5 |
| 19 | 11.2 | 16 | 11.2 | 23.6 | 17 |
| 20 | 12.5 | 17 | 12.5 | 26.5 | 19 |
| 22 | 15 | 21.2 | 15 | 31.5 | 22.4 |
| 26 | 21.2 | 30 | 21.2 | 45 | 31.5 |
| 32 | 31.5 | 45 | 31.5 | 67 | 47.5 |
