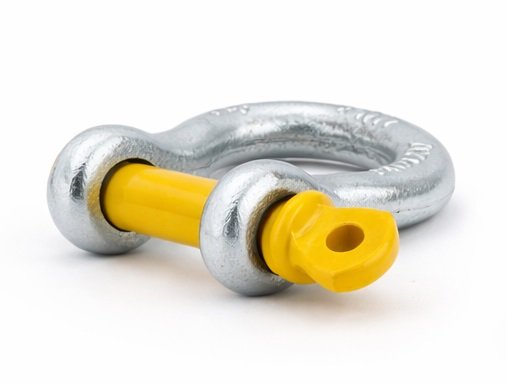

Australian Type Drop Forged Screw Pin Bow Shackle

AS2741 Grade S Bow Shackle are most commonly used for lifting applications, providing connections to Chain, Wire Rope and other rated fittings within the Marine, Agricultural, Mining and Engineering Industries. Screw pin bow shackles have a large rounded shape that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap.

Products Introduction

Product Features:

• Conforms to AS2741 manufactured from Grade”S”material in Bow configuration with Screw Pin.

• Galvanized, Powder Coating or Self Colored.

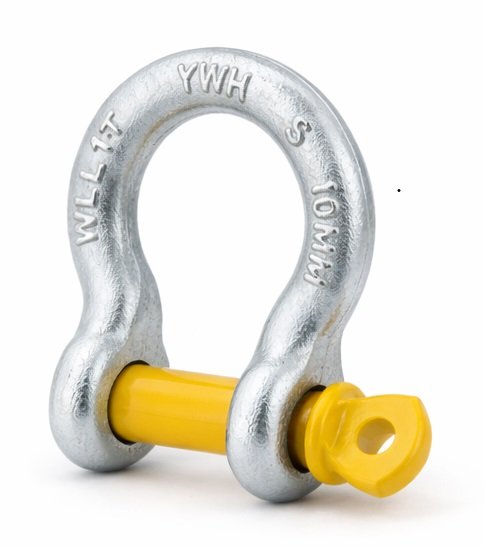

• Marked with work load limit in tonnes, quality grade.

• Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.

• Test Certificates are available upon request.

• Suitable for lifting applications.

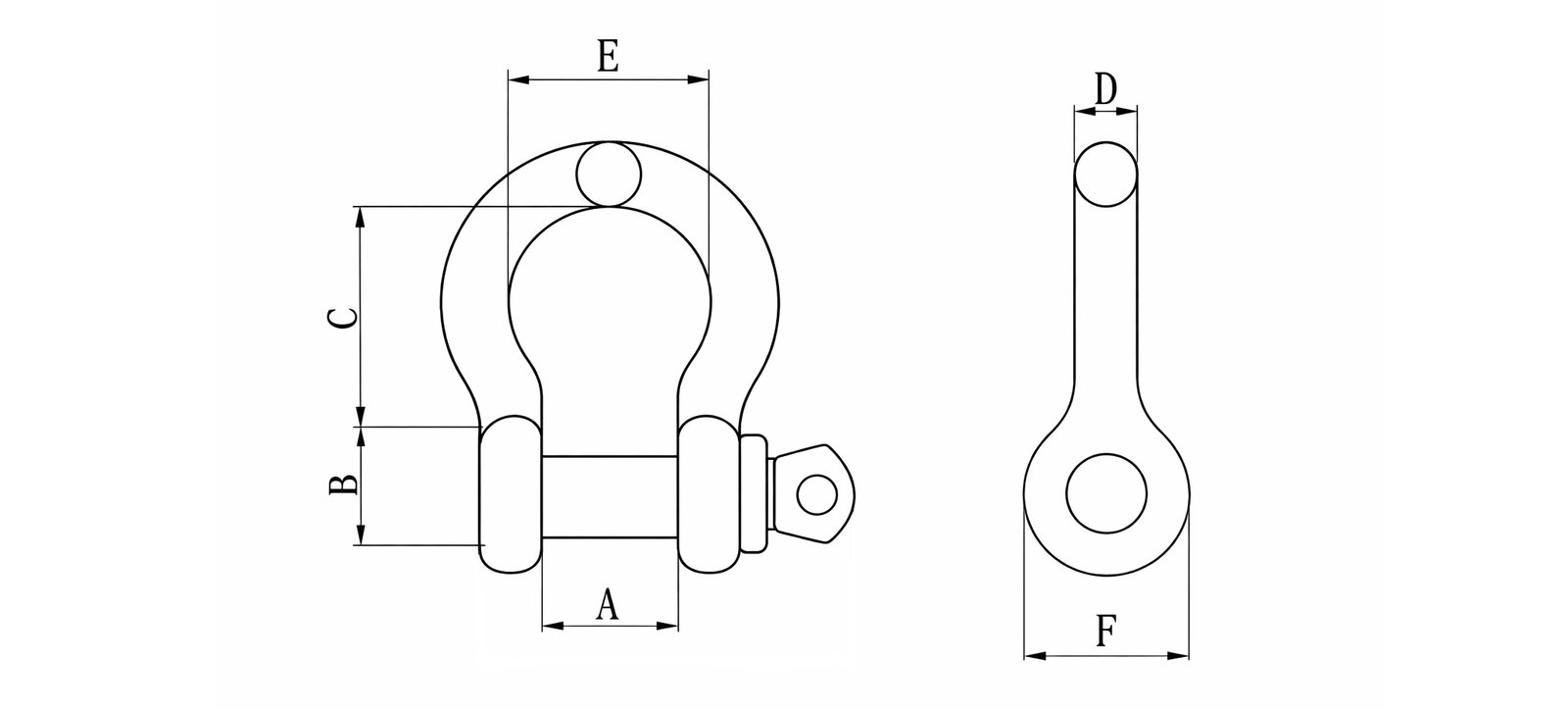

Specifications

Size	WLL	Weight	Dimensions
Size	WLL	Weight	(mm)
(mm)	(tonnes)	(kg)	B	D	d	E	L	W
5	0.33	0.02	15	6	5	14	22	10
6	0.5	0.05	20	8	6	17	29	12
8	0.75	0.09	21	10	8	21	31	13
10	1	0.14	26	11	10	25	37	17
11	1.5	0.17	29	13	11	27	43	18
13	2	0.29	33	16	13	33	48	21
16	3.2	0.63	43	19	16	40	61	27
19	4.7	1.02	51	22	19	48	72	32
22	6.5	1.53	58	25	22	54	84	37
25	8.5	2.41	68	29	25	60	95	43
29	9.5	3.09	74	32	29	67	108	46
32	12	4.31	83	35	32	76	119	52
35	13.5	6.01	92	38	35	84	133	57
38	17	8.03	98	44	38	92	146	60
44	25	13.79	127	51
