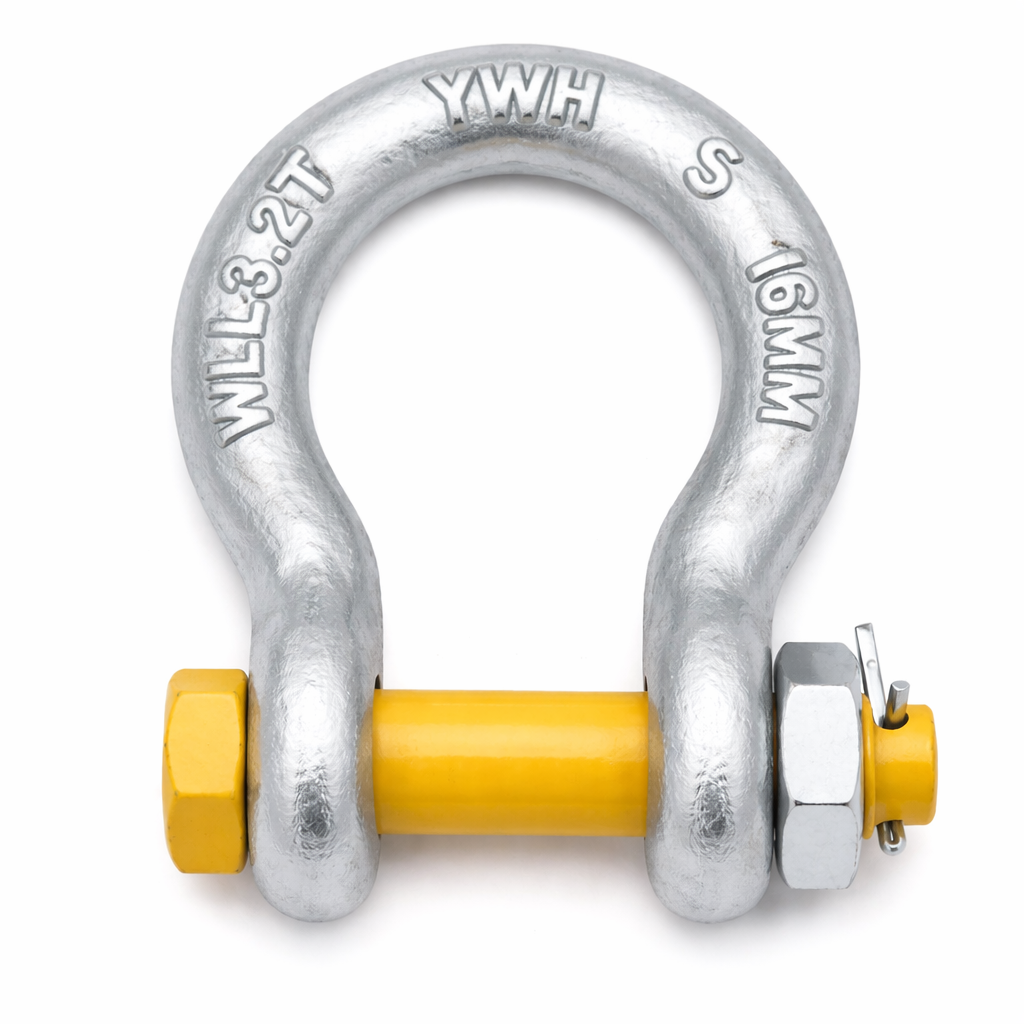

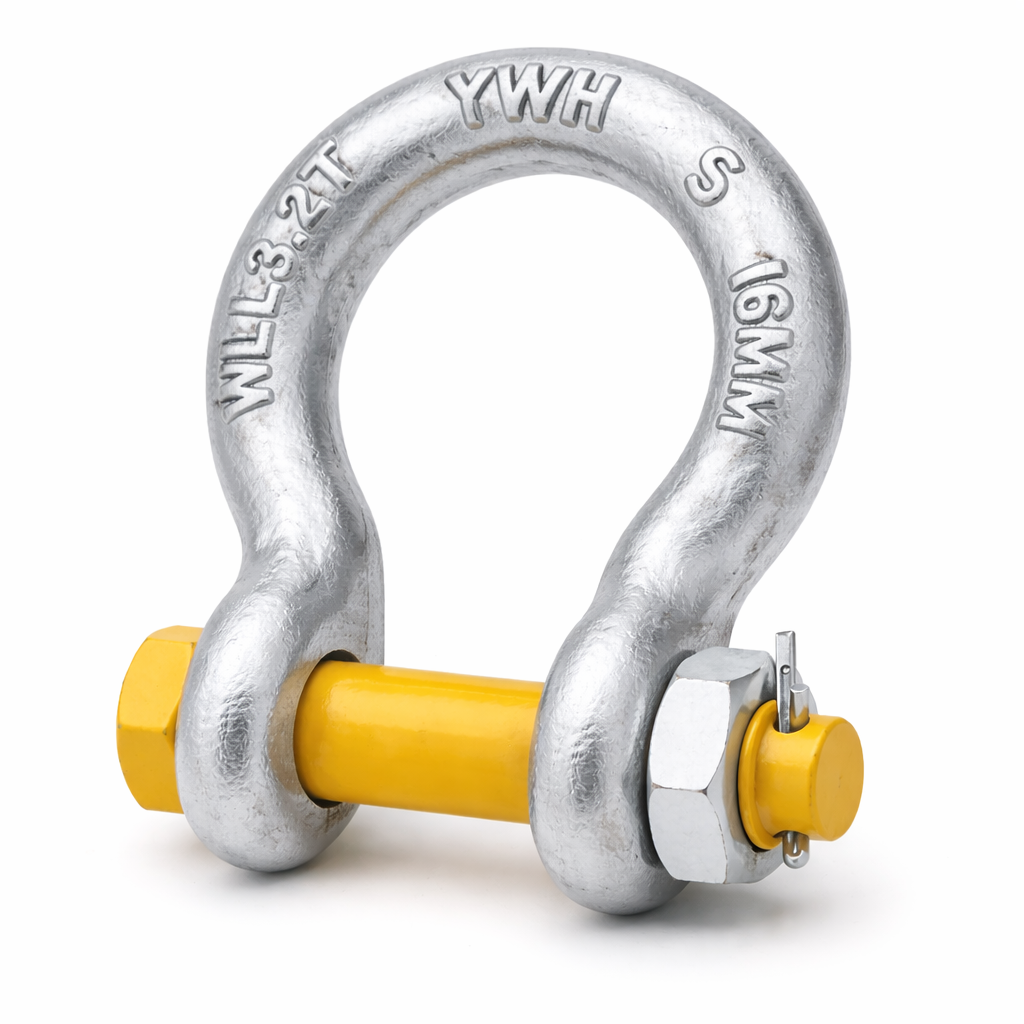

AS2741 GRADE S SAFETY BOLT BOW SHACKLE
- Australian Standard Certified – in compliance with AS2741 / AS2742-2002 and EN13889-2003
- High Tensile Strength – Made from high-quality 45# carbon steel body and 40Cr alloy steel pin for superior strength
- Grade S Identification – Clearly forged and stamped “Grade S” marking for easy identification and compliance verification.
- Hot Dip Galvanized Finish – Provides excellent corrosion resistance, suitable for marine and outdoor environments.
- Heat Treated for Performance – Fully quenched and tempered to enhance toughness and fatigue resistance.
- High Safety Factor – 6 TIMES Working Load Limit (WLL) for dependable lifting and rigging operations.
- Versatile Applications – Ideal for lifting, rigging, towing, marine, and industrial use.
- +86 0532 68722298
Products Introduction
Specifications

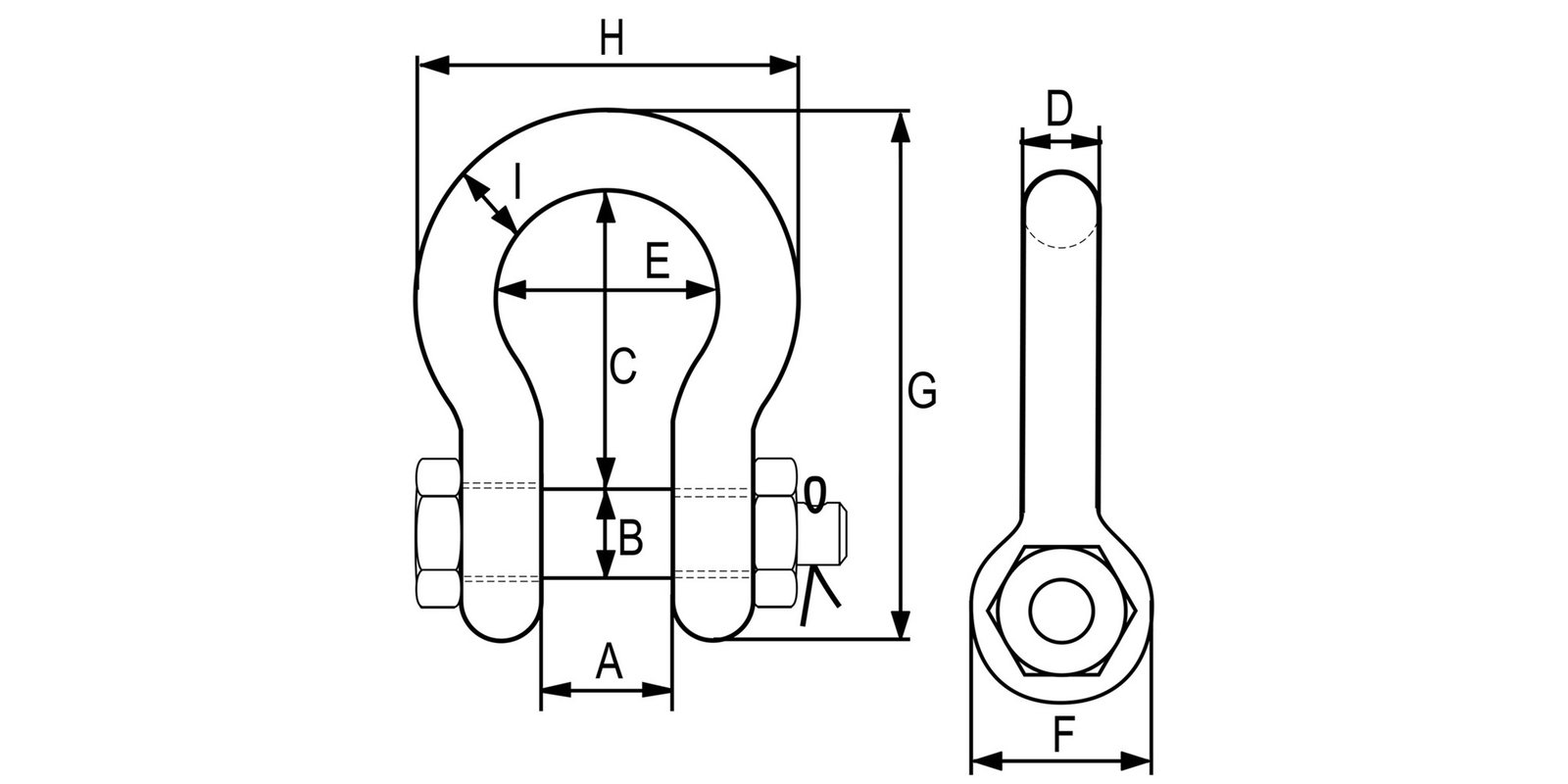

| Size | WLL | Weight | Dimensions (mm) | |||||||||
| (MM) | (t) | (kg) | A | B | C | D | E | F | G | H | I | M |
| 5 | 0.3 | 0.03 | 10 | 6 | 22 | 5 | 15 | 14 | 37 | 25 | 5 | 33 |
| 6 | 0.5 | 0.05 | 12 | 8 | 29 | 6 | 20 | 16 | 47 | 33 | 6 | 40 |
| 8 | 0.75 | 0.1 | 14 | 10 | 31 | 8 | 21 | 19 | 53 | 37 | 8 | 46 |
| 10 | 1.0 | 0.15 | 17 | 11 | 37 | 10 | 26 | 23 | 64 | 46 | 10 | 55 |
| 11 | 1.5 | 0.22 | 19 | 13 | 43 | 11 | 30 | 27 | 74 | 52 | 11 | 64 |
| 13 | 2.0 | 0.36 | 21 | 16 | 48 | 13 | 33 | 30 | 84 | 59 | 13 | 71 |
| 16 | 3.2 | 0.76 | 27 | 20 | 61 | 16 | 43 | 38 | 106 | 75 | 18 | 90 |
| 19 | 4.7 | 1.23 | 32 | 23 | 72 | 19 | 51 | 46 | 126 | 89 | 21 | 105 |
| 22 | 6.5 | 1.79 | 37 | 26 | 84 | 22 | 58 | 53 | 148 | 103 | 25 | 122 |
| 25 | 8.5 | 2.57 | 43 | 29 | 96 | 25 | 68 | 61 | 167 | 119 | 27 | 137 |
| 29 | 9.5 | 3.75 | 46 | 32 | 108 | 30 | 74 | 69 | 190 | 131 | 32 | 150 |
| 32 | 12.0 | 5.31 | 52 | 36 | 119 | 33 | 83 | 76 | 210 | 146 | 35 | 170 |
| 35 | 13.5 | 7.18 | 57 | 39 | 133 | 36 | 92 | 84 | 233 | 162 | 38 | 183 |
| 38 | 17.0 | 8.62 | 61 | 42 | 146 | 39 | 99 | 92 | 254 | 176 | 41 | 196 |
| 44 | 25.0 | 15.4 | 73 | 52 | 178 | 47 | 127 | 106 | 313 | 224 | 57 | 245 |
| 51 | 35.0 | 23.7 | 83 | 59 | 197 | 53 | 146 | 122 | 348 | 258 | 61 | 274 |
| 64 | 55.0 | 44.6 | 105 | 71 | 267 | 69 | 184 | 148 | 455 | 324 | 80 | 344 |
| 76 | 85.0 | 69.9 | 127 | 84 | 330 | 79 | 200 | 165 | 546 | 371 | 92 | 384 |
| 89 | 120.0 | 120 | 133 | 96 | 372 | 92 | 229 | 203 | 632 | 432 | 111 | 432 |
| 102 | 150.0 | 153 | 140 | 108 | 368 | 102 | 254 | 229 | 652 | 457 | 116 | 457 |
