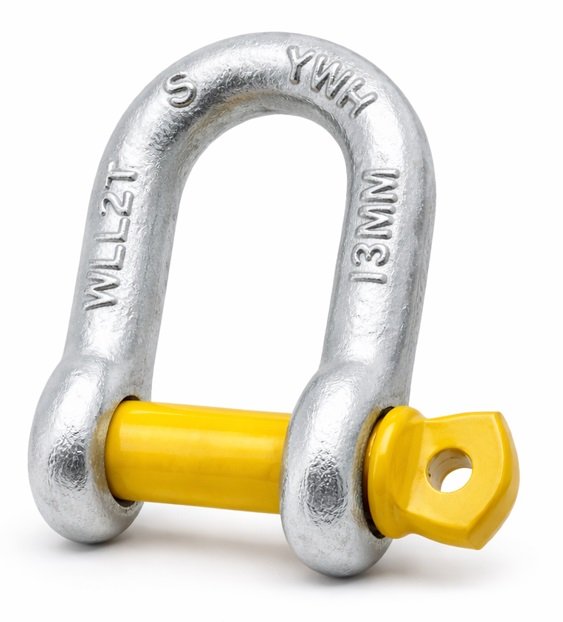

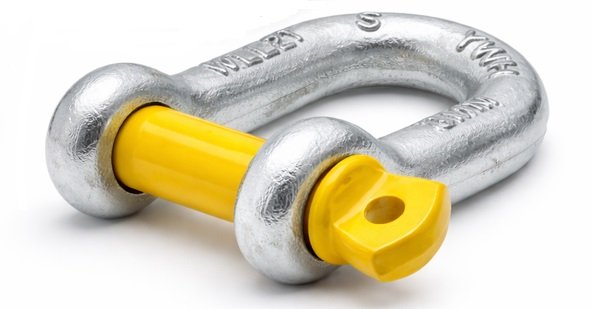

AS2741 GRADE S DEE SHACKLE
- Australian Standard Certified – in compliance with AS2741 / AS2742-2002 and EN13889-2003
- High Tensile Strength – Made from high-quality 45# carbon steel body and 40Cr alloy steel pin for superior strength
- Grade S Identification – Clearly forged and stamped “Grade S” marking for easy identification and compliance verification.
- Hot Dip Galvanized Finish – Provides excellent corrosion resistance, suitable for marine and outdoor environments.
- Heat Treated for Performance – Fully quenched and tempered to enhance toughness and fatigue resistance.
- High Safety Factor – 6 TIMES Working Load Limit (WLL) for dependable lifting and rigging operations.
- Versatile Applications – Ideal for lifting, rigging, towing, marine, and industrial use.
- +86 0532 68722298
Products Introduction

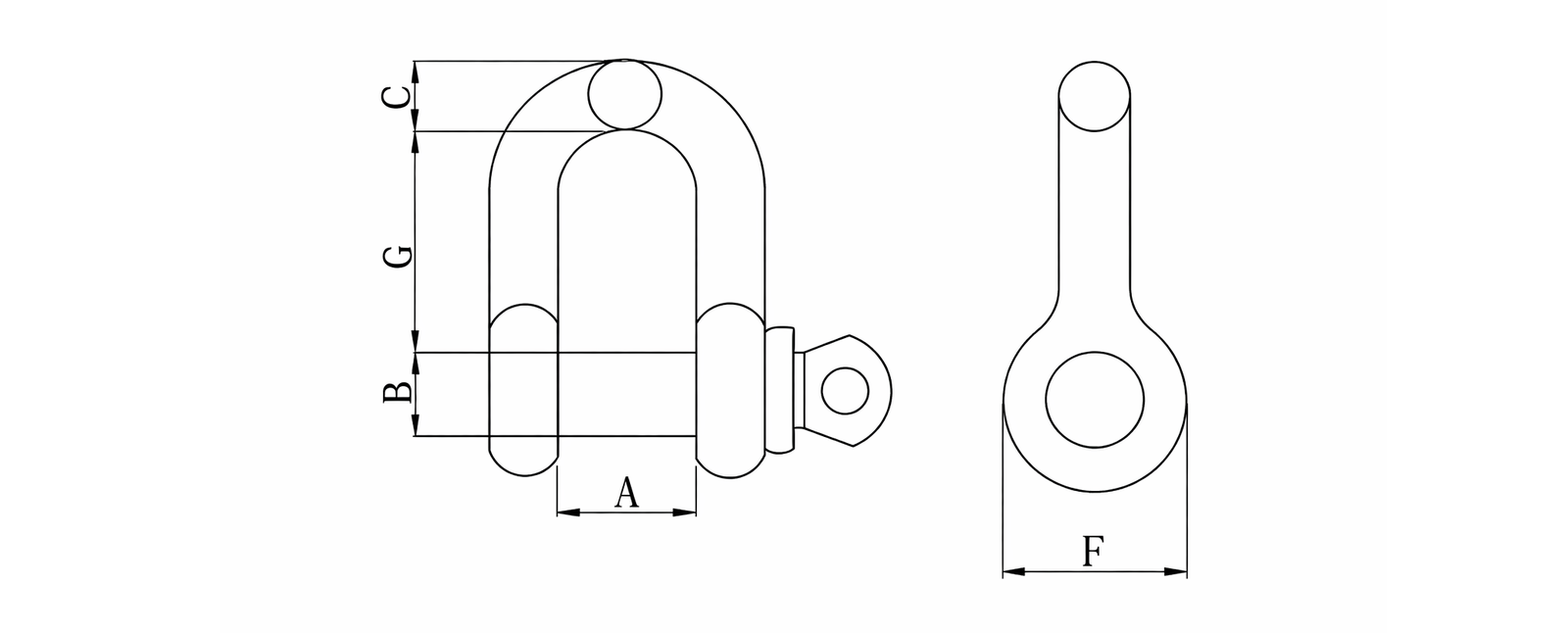

Specifications
| Size | WLL | Dimensions(mm) | Weight | ||||
|---|---|---|---|---|---|---|---|
| （mm） | (t） | A | B | C | F | G | (kg) |
| 6 | 0.5 | 12 | 8 | 6 | 17 | 22 | 0.05 |
| 8 | 0.75 | 13 | 10 | 8 | 21 | 26 | 0.09 |
| 10 | 1 | 17 | 11 | 10 | 25 | 32 | 0.14 |
| 11 | 1.5 | 18 | 13 | 11 | 27 | 37 | 0.17 |
| 13 | 2 | 21 | 16 | 13 | 33 | 41 | 0.29 |
| 16 | 3.2 | 27 | 19 | 16 | 40 | 51 | 0.63 |
| 19 | 4.7 | 32 | 22 | 19 | 48 | 60 | 1.02 |
| 22 | 6.5 | 37 | 25 | 22 | 54 | 71 | 1.53 |
| 25 | 8.5 | 43 | 29 | 25 | 60 | 81 | 2.41 |
| 29 | 9.5 | 46 | 32 | 29 | 67 | 90 | 3.09 |
| 32 | 12 | 52 | 35 | 32 | 76 | 100 | 4.31 |
| 35 | 13.5 | 57 | 38 | 35 | 84 | 113 | 6.01 |
| 38 | 17 | 60 | 44 | 38 | 92 | 124 | 8.03 |
| 44 | 25 | 73 | 51 | 44 | 110 | 146 | 11.48 |
| 51 | 35 | 83 | 57 | 51 | 127 | 171 | 20.42 |
| 57 | 42.5 | 95 | 63 | 57 | 143 | 181 | 26.06 |
| 63 | 55 | 105 | 70 | 63 | 152 | 203 | 38.8 |
