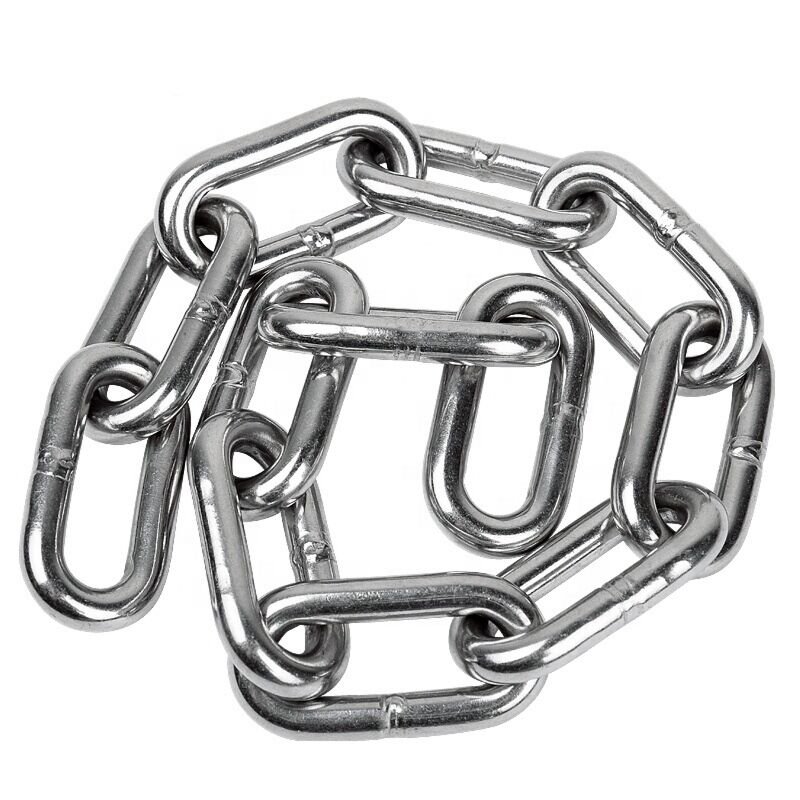

DIN5685C LONG LINK STAINLESS STEEL CHAIN
- COMMONLY USED FOR:
- MARINE
- INDUSTRIAL APPLICATION
- CHEMICAL INDUSTRIES
- FOOD PROCESSING
- SOME EXTREME ENVIRONMENTS
- MATERIAL:
- AISI 304
- AISI 316
- PROOF TESTED
- DESIGN FACTOR 4 : 1
- POLISHED FINISH
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !
NOT FOR OVERHEAD LIFTING
Products Introduction
Specifications
| NOMINAL SIZE | PITCH | INTERNAL WIDTH | WORKING LOAD LIMIT | MIN. BREAKING FORCE | WEIGHT |
|---|---|---|---|---|---|
| D | L | b | |||
| mm | mm | mm | KG | N | KG/100M |
| 2 | 22 | 3.5 | 25 | 1,250 | 6.3 |
| 2.5 | 24 | 4.5 | 40 | 2,000 | 10.1 |
| 3 | 26 | 5.5 | 55 | 3,200 | 14.8 |
| 4 | 32 | 7 | 100 | 6,500 | 26.7 |
| 4.5 | 34 | 8 | 128 | 8,000 | 37 |
| 5 | 35 | 9 | 160 | 10,000 | 43.3 |
| 6 | 42 | 11 | 200 | 12,000 | 62.4 |
| 7 | 49 | 12 | 300 | 19,000 | 84.7 |
| 8 | 52 | 14 | 400 | 25,000 | 113 |
| 10 | 65 | 18 | 630 | 40,000 | 177 |
| 12 | 78 | 22 | 940 | 56,500 | 254 |
| 13 | 82 | 23 | 1,000 | 63,000 | 302 |
| 16 | 100 | 30 | 1,600 | 100,000 | 457 |
