NACM2010 MACHINE CHAIN – STRAIGHT LINK
NACM2010 MACHINE CHAIN – STRAIGHT LINK - Image 2
NACM2010 MACHINE CHAIN – STRAIGHT LINK - Image 3
NACM2010 MACHINE CHAIN – STRAIGHT LINK - Image 4

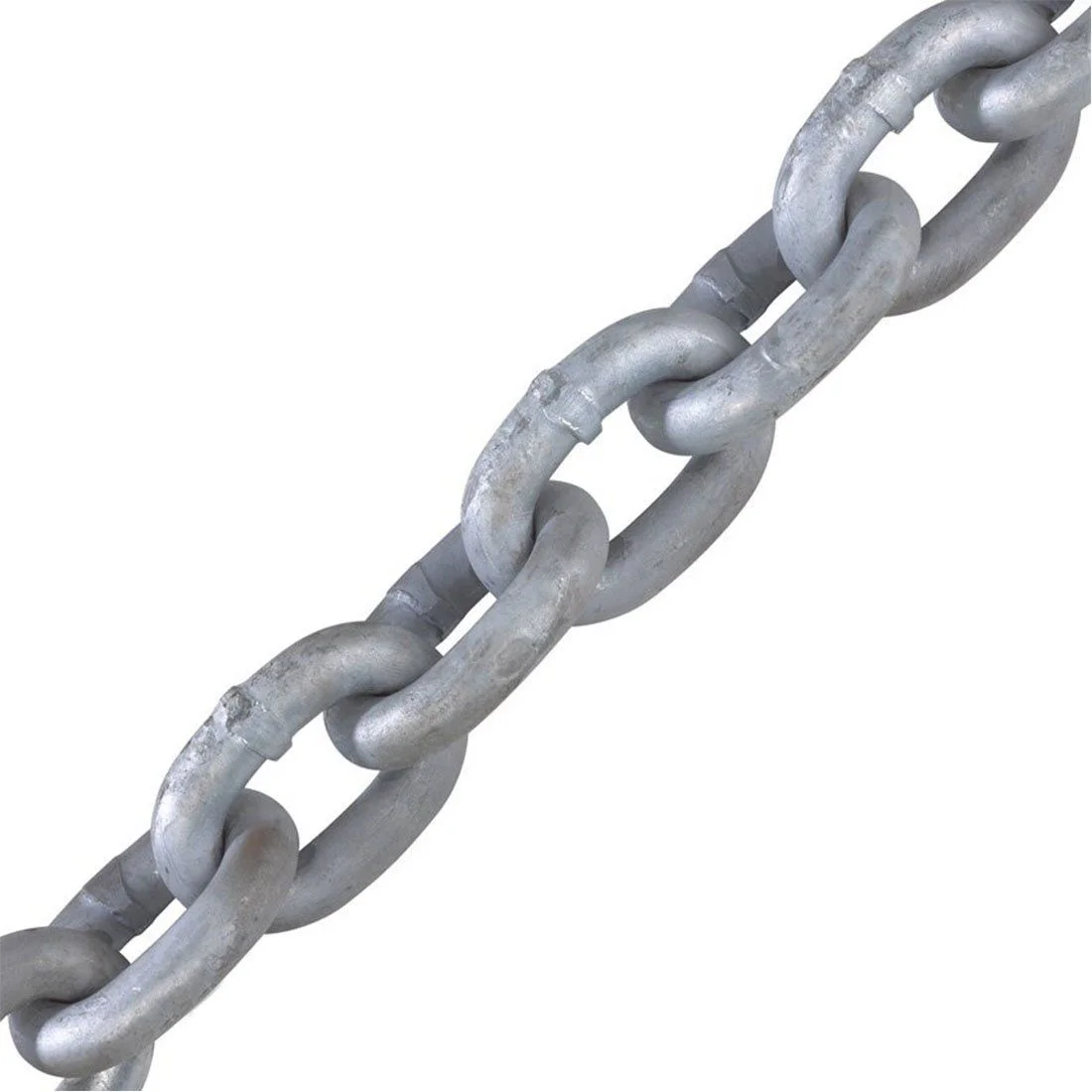

NACM2010 MACHINE CHAIN – STRAIGHT LINK

  • MEET THE LATEST GUIDELINES OF THE NATIONAL ASSOCIATION OF CHAIN MANUFACTURERS (NACM)
  • COMMONLY USED FOR TAIL GATES, AGRICULTURAL IMPLEMENTS AND INDUSTRIAL EQUIPMENT
  • MATERIAL: LOW CARBON STEEL
  • DESIGN FACTOR 4 : 1
  • FINISHES AVAILABLE:
    • SELF-COLOR
    • ZINC PLATED
    • HOT DIP GALVANIZED

WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !

NOT FOR OVERHEAD LIFTING

  • +86 0532 68722298
Chat Online
Send Message
Products Introduction
Specifications
Related Products
Inquiry

Products Introduction

Specifications

TRADE SIZEMATERIAL DIAMETERWORKING LOAD LIMIT(MAX.)PROOF TEST (MIN.)MIN. BREAKING FORCENOMINAL INSIDE LENGTHNOMINAL INSIDE WIDTH
mmINmmLBSKGLBSkNLBSkNINmmINmm
430.123215984301.918603.820.55140.215.3
33.40.1353.42701225402.41,0804.80.59150.246.1
23.80.1483.83251476502.891,3005.780.6115.50.266.6
14.10.1624.13901777803.471,5606.930.63160.287.1
1/04.50.1774.54652119304.141,8608.270.7418.80.317.9
2/04.90.1924.95452471,0904.852,1809.690.7819.80.348.6
3/05.30.2075.36352881,2705.652,54011.290.8521.60.369.1
4/05.50.2185.57003181,4006.232,80012.440.9925.10.389.6
5/06.40.256.49254201,8508.233,70016.441.0727.20.4411.2
